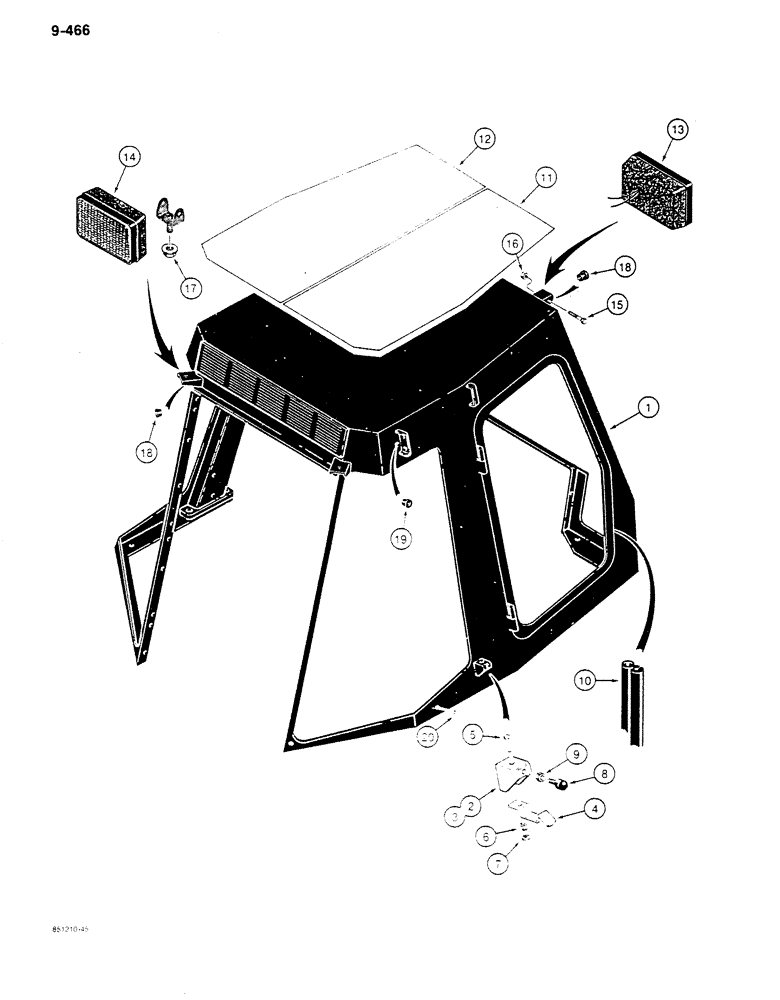

Запчасти Case 680K (9-466) - CAB FRAME AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab, Includes: Ref. 2, 3

1шт.

2

F97010

BRACKET

- window latch, right-hand

1шт.

3

F97011

BRACKET

- window latch, left-hand

1шт.

4

F42772

LATCH

- window

2шт.

5

7703473

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

- hex head, 1/4" - 20 NC x 1-1/4", plated

2шт.

6

D36669

SPRING

- bracket

2шт.

7

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4"-20 NC, plated

2шт.

8

F44935

BUMPER

- window

2шт.

9

425-145

JAM NUT,Jam, 5/16"-18, G5

- hex, jam, 5/16" - 18 NC, plated

2шт.

10

REF

INSTRUCTION

SEAL - right-hand window frame, cut to length from F43086, see below

1шт.

11

F44914

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, right-hand

1шт.

12

F44915

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, left-hand

1шт.

13

REF

INSTRUCTION

LAMP ASSEMBLY - front, used without hinge bracket, parts list page 4-116

2шт.

14

REF

INSTRUCTION

LAMP ASSEMBLY - rear, uses hinge bracket, parts list page 4-116

2шт.

15

424-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 2

- hex head, 5/16" - 18 NC x 2-1/2", plated

2шт.

16

131-205

LOCK NUT,5/16"-18

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

18

353-700

BUSHING

GROMMET - front and rear lamp wires

4шт.

19

353-486

GROMMET

- 1-1/2" hole size, side lamp wires, inner and outer

4шт.

20

60-4258T1

PLUG

- nylon, 3/8" (10 mm) diameter, frame

2шт.

F43086X

SEAL, GLASS

SEAL - bulk, 25 ft

1шт.
