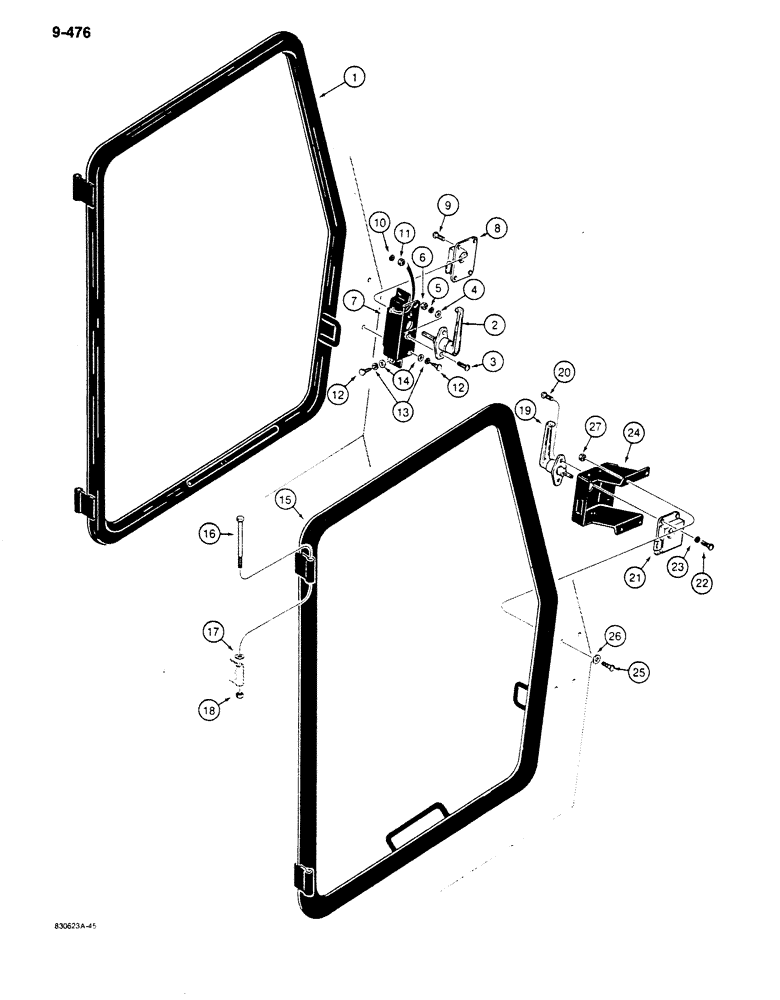

Запчасти Case 680K (9-476) - CAB SIDE WINDOWS (09) - CHASSIS/ATTACHMENTS

1

F96713

WINDOW

FRAME - window, left-hand

1шт.

2

F45168

HANDLE

- window, left-hand

1шт.

3

179-1554

SCREW - machine, oval Phillips head, No. 10 - 24 NC x 5/8", plated

2шт.

4

9421089

WASHER

- flat, No. 10, plated

2шт.

5

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

225-14110

NUT,#10-24

2шт.

7

F44829

SUPPORT

- window latch, left-hand

1шт.

8

F45167

LATCH

- window, left-hand

1шт.

9

353665X1

SCREW

BOLT - hex head, 1/4" - 20 NC x 1/2", plated

4шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

4шт.

12

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - special, smooth head, self-tapping, requires special tools for installation

4шт.

13

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

14

9421089

WASHER

- flat, No, 10, plated

4шт.

15

F96712

FRAME

- window, right-hand

1шт.

16

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex head, 3/8" - 16 NC x 4-1/2", plated

4шт.

17

60-4585T1

SPACER

WASHER - thrust, window frame

8шт.

18

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

19

F45168

HANDLE

- winodw, right-hand

1шт.

20

442-1108

SCREW,Phillips Drive, Oval HD, #10 - 24 x 1/2"

- machine, oval Phillips head, No. 10 - 24 NC x 1/2", plated

2шт.

21

F45164

LATCH

- window, right-hand

1шт.

22

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 - 16 x 1/2 ", plated

4шт.

23

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

24

F96825

HOUSING

- latch, right-hand

1шт.

25

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips head, No. 10 - 24 NC x 1/2", plated

4шт.

26

9421089

WASHER

- flat, No. 10, plated

4шт.

27

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.
