(9-496) - CAB AIR FILTER AND ROOF INSTALLATION

Запчасти Case 680K (9-496) - CAB AIR FILTER AND ROOF INSTALLATION (09) - CHASSIS/ATTACHMENTS

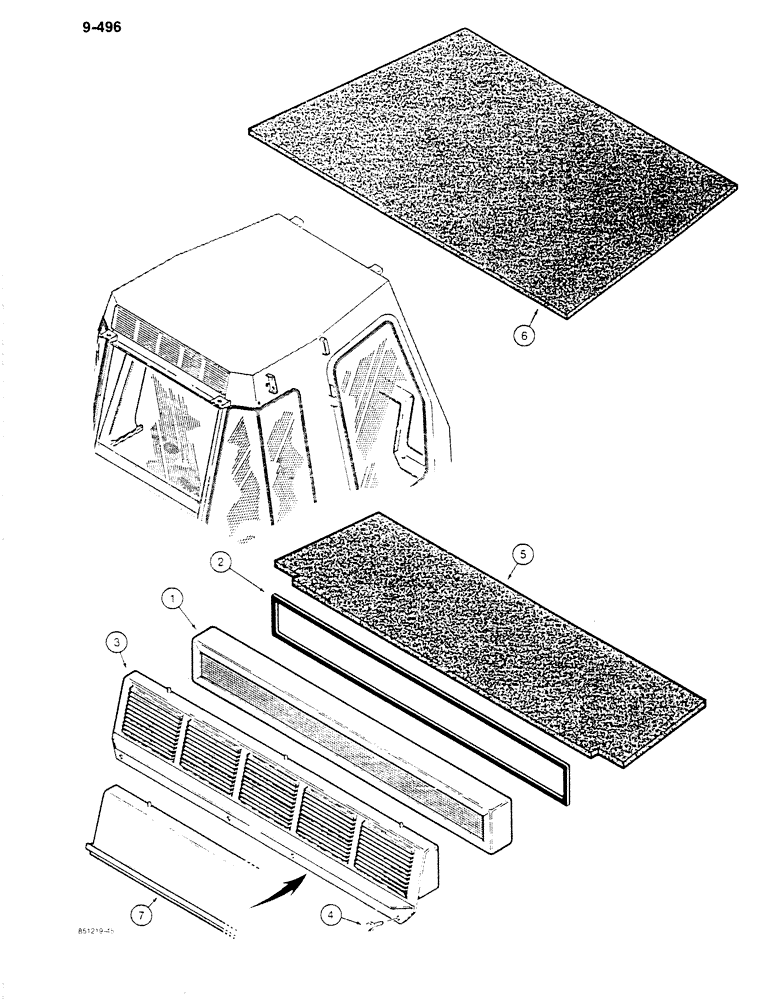

Схема запчастей Case 680K - (9-496) - CAB AIR FILTER AND ROOF INSTALLATION (09) - CHASSIS/ATTACHMENTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F44714

FILTER

- air

1шт.

2

F44774

SEAL

- filter

1шт.

3

F96711

GUARD

COVER - filter, with louvers

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

5

F44800

LINING

- roof, rear

1шт.

6

F44799

LINING

- roof, front

1шт.

7

F96714

COVER

- filter, without louvers, if used

1шт.
