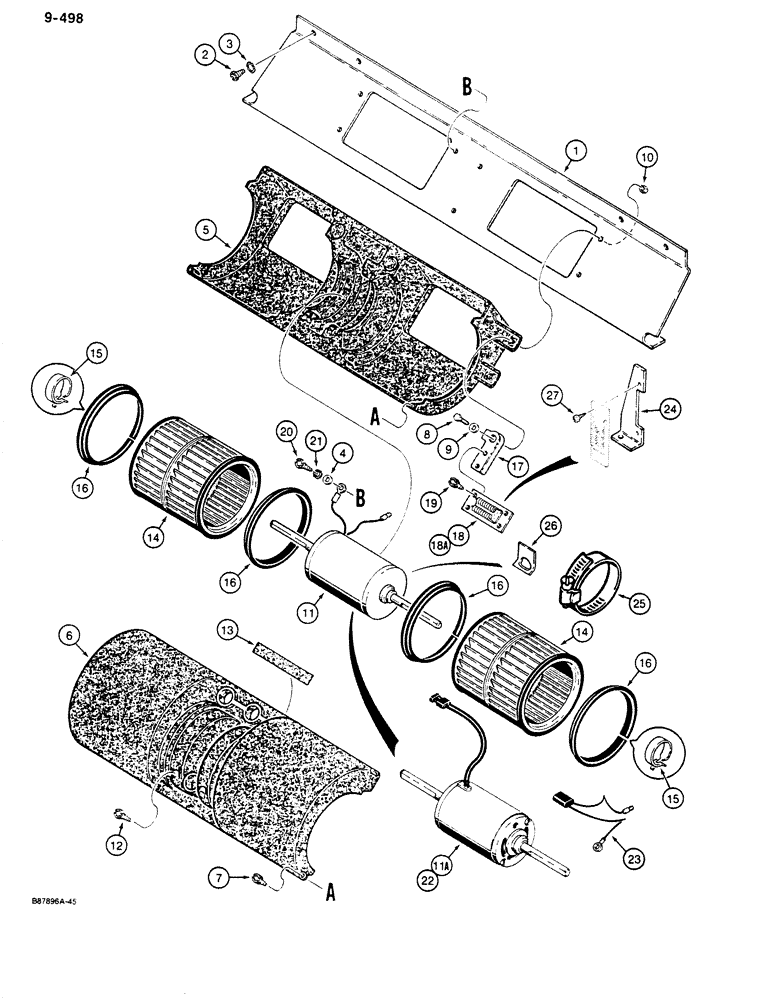

Запчасти Case 680K (9-498) - CAB BLOWER (09) - CHASSIS/ATTACHMENTS

1

F45208

BRACKET

- blower mounting

1шт.

2

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - hex head, self-tapping, No. 12 - 24 NC x 1/2", plated

4шт.

3

93-41023

LOCK WASHER,Ext Tooth, #12

WASHER - external tooth lock, No. 12

4шт.

4

9421089

WASHER

- flat, No. 10, plated

3шт.

5

F64740

HOUSING

- fans, plastic, lower

1шт.

6

F64741

HOUSING

- fans, plastic, upper

1шт.

7

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, self-tapping, No. 8 - 16 NC x 3/4", plated

8шт.

8

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 - 24 NC x 3/4", plated

4шт.

9

9421089

WASHER

- flat, No. 10, plated

4шт.

10

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 - 24 NC, plated

4шт.

11

F96902

MOTOR, ELECTRIC

MOTOR - blower, used on models with 24 volt electrical circuit, no longer available, order (1) item 22 A187600 motor and (1) item 23 A187699 adapter harness

1шт.

11a

R54415

MOTOR, ELECTRIC

MOTOR - blower, used on models with 12 volt electrical circuit

1шт.

12

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - pan head, self-tapping, No. 8 - 16 NC x 1", plated

4шт.

13

REF

INSTRUCTION

SEAL - foam, upper fan housing, 4" (102 mm) long, cut from F64119 bulk, see below

1шт.

14

F64935

BLOWER,Fan

FAN - blower

2шт.

15

F64936

CLAMP

- steel spring

2шт.

16

F64739

RING

- plastic, fan retaining

4шт.

17

F66204

BRACKET

- resistor mounting, with resistor mounted horizontally, use on models with F96902 motor

1шт.

18

F44903

RESISTOR

- blower, used on models with 24 volt electrical circuit

1шт.

18a

F44900

RESISTOR

- blower, used on models with 12 volt electrical circuit

1шт.

19

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, self-tapping, No. 8 - 16 NC x 3/4", plated, use on models with F96902 motor

2шт.

20

265-14512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval Phillips head, self-tapping, No. 10 - 16 NC x 3/4", plated

3шт.

21

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

3шт.

22

A187600

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal

1шт.

23

A187699

HARNESS

- use to adapt D137814 main cab harness with bullet type, Serial Range: connector-A187600

1шт.

24

97389C1

SUPPORT

BRACKET - resistor mounting, with resistor mounted vertically, use on models with A187600 and R54415 motor

1шт.

25

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, motor retaining, use on models with A187600 motor

1шт.

26

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp, use on models with A187600 motor

1шт.

27

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 - 16 x 1/2 ", plated, use on models with A187600 and R54415 motor

2шт.

F64119X

GASKET

SEAL - foam, bulk roll, 100 ft (3048 cm) long

1шт.
