(4-096) - ELECTRICAL CIRCUIT, SPECIAL PARTS USED ON MODELS WITH 12 VOLT ELECTRICAL CIRCUIT

Запчасти Case 680K (4-096) - ELECTRICAL CIRCUIT, SPECIAL PARTS USED ON MODELS WITH 12 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

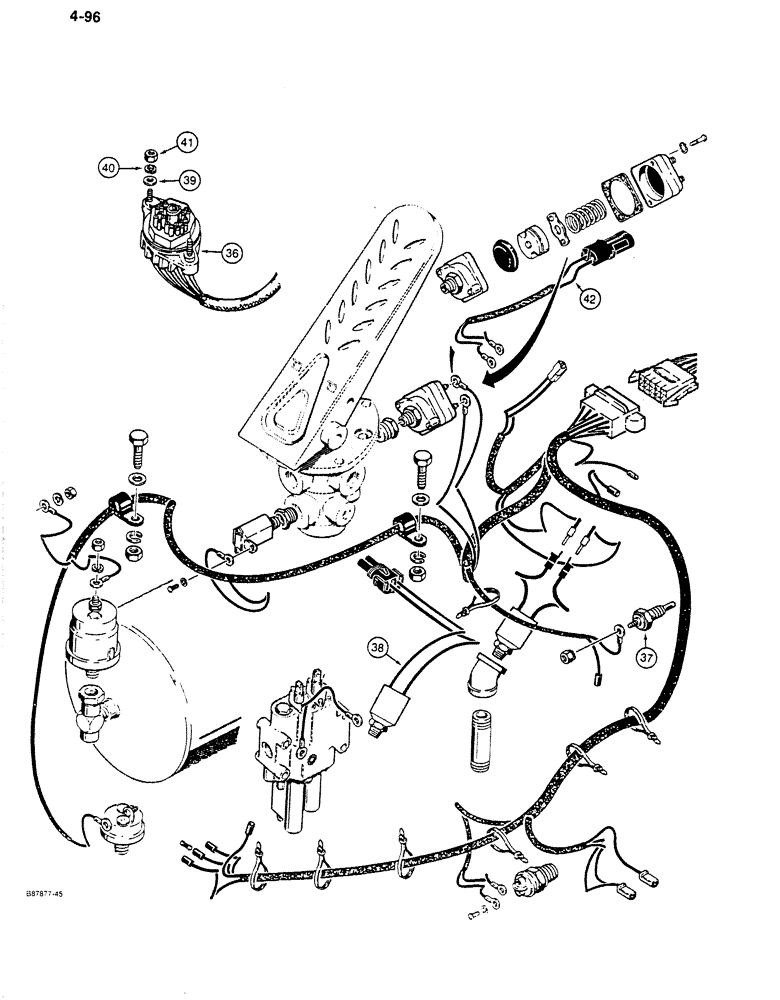

Схема запчастей Case 680K - (4-096) - ELECTRICAL CIRCUIT, SPECIAL PARTS USED ON MODELS WITH 12 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

36

D137813

HARNESS

- rear

1шт.

37

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - converter oil temperature

1шт.

38

L116711

SWITCH

- clutch pressure

1шт.

39

95-21031

WASHER,1/4"

- flat, , plated 1/4"

2шт.

40

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

42

D139175

HARNESS

WIRE - stop lamp switch

1шт.
