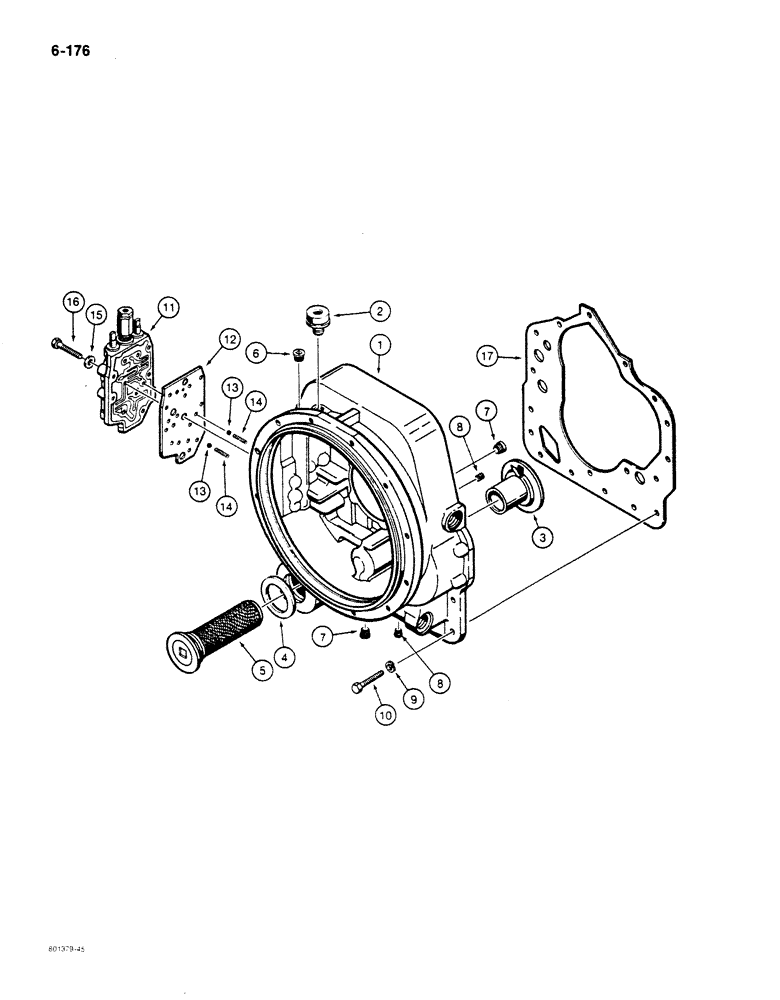

Запчасти Case 680K (6-176) - TORQUE CONVERTER HOUSING AND CONTROL VALVE (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-172 for transmission options, parts list Figures 6-172 through 6-192, Includes: Ref. 1 - 17

1шт.

1

N7135

HOUSING

- torque converter, used with N7154 reverse idler shaft, order D142269 housing and Ref. 45 - 48 and 53 on Figure 6-186

1шт.

1

D142269

HOUSING

- torque converter, used with D142275 reverse idler shaft, see page 6-187

1шт.

2

N7134

BREATHER

- air, torque converter

1шт.

3

E114312

SLEEVE

- torque converter housing

1шт.

4

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- screen

1шт.

5

L33482

FILTER SCREEN

SCREEN - filter

1шт.

6

S117872

PLUG

- 1/4", special, torque converter housing

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

2шт.

8

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

2шт.

9

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

10

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex head, 7/16" - 14 NC x 1-1/4", plated

16шт.

11

N8879

LOCK VALVE

VALVE ASSEMBLY - forward and reverse, parts list page 6-193

1шт.

12

E114308

GASKET

- control valve

1шт.

13

211-210

BALL,3/8" Dia

- 3/8", grade 25, chrome alloy, steel

2шт.

14

E114309

SPRING

- detent

2шт.

15

492-11038

LOCK WASHER,3/8"

9шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", plated

9шт.

17

N7138

WASHER

GASKET - torque converter, Serial Range: housing-transmission

1шт.
