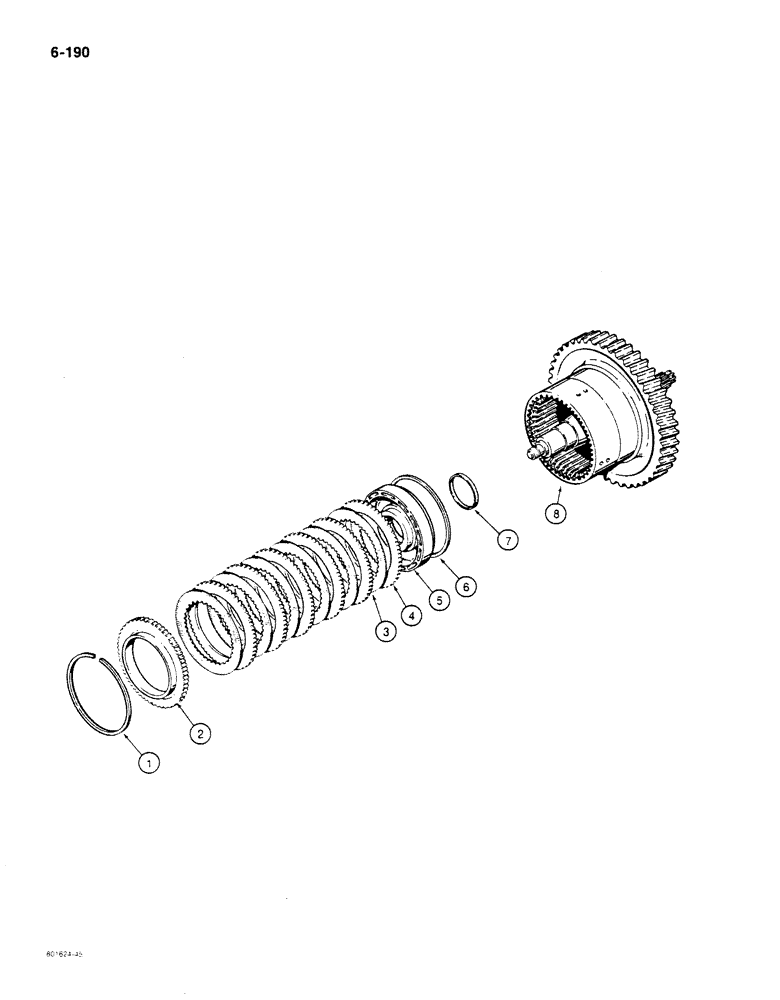

Запчасти Case 680K (6-190) - TRANSMISSION THIRD CLUTCH SHAFT AND DRUM ASSEMBLY (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-172 for transmission options, parts list Figures 6-172 thru 6-192, Includes: Clutch Assy and Ref. 1 - 8

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, output shaft, Includes: Ref. 1 - 8

1шт.

1

292415A1

RING, SNAP

RING - retaining, backing plate

1шт.

2

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

3

S117875

DISC

- clutch, friction, inner teeth

6шт.

4

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

6шт.

5

E114392

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

8

N7218

GEAR WHEEL

DRUM - includes output shaft, clutch

1шт.
