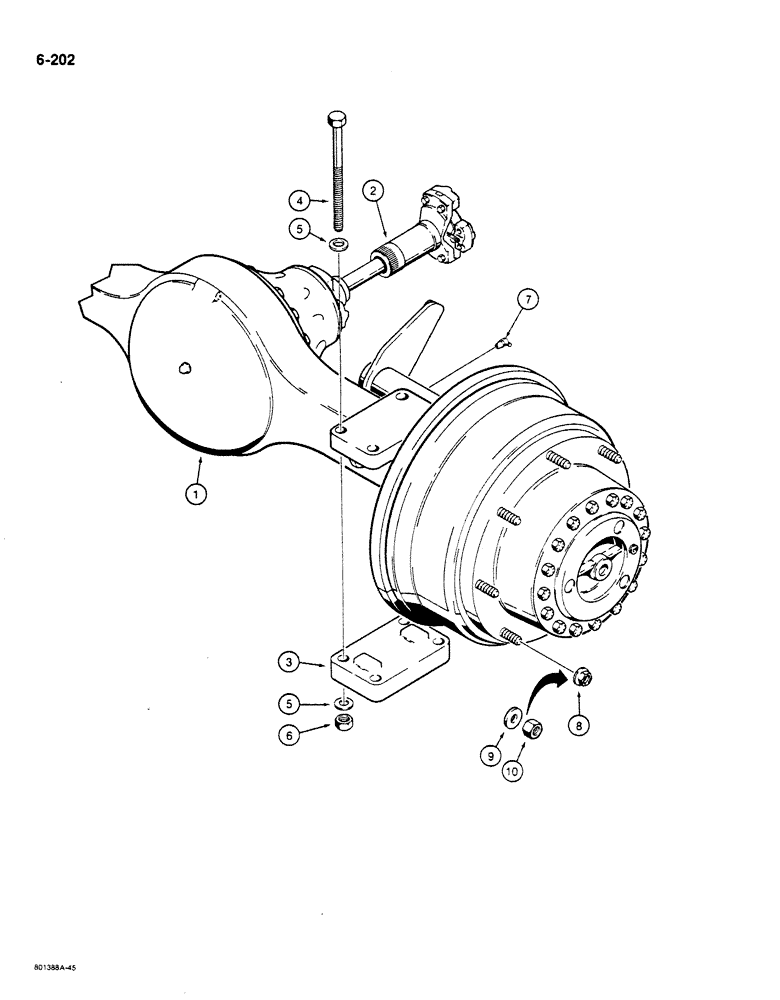

Запчасти Case 680K (6-202) - REAR DRIVE AXLE MOUNTING PARTS (06) - POWER TRAIN

1

L61025

AXLE ASSEMBLY - rear, parts list Figures 6-204 through 7-214

1шт.

2

L101466

SHAFT

ASSEMBLY - drive, parts list Figure 6-200

1шт.

3

L107782

PAD

- axle mounting, not shipped with axle, order separately

2шт.

4

27630R1

BOLT,Hex, 7/8" - 14 x 10", Gr 8

- hex head, 7/8" - 14 NF x 10", grade 8

8шт.

5

496-81006

WASHER,0.91" ID x 1.5" OD x 0.13" Thk

- 7/8" ID x 1-1/2" OD, plated, hardened

16шт.

6

232-46114

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

8шт.

7

77081

FITTING

- grease, 45 degree, special short, 1/8" NPT

2шт.

8

NSS

NOT SOLD SEPARAT

NUT - wheel, not shipped with axle order items 9 and 10

16шт.

9

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- special

16шт.

10

29-1112

NUT,3/4"-16, G8

- hex, 3/4" - 16 NF, grade 8

16шт.
