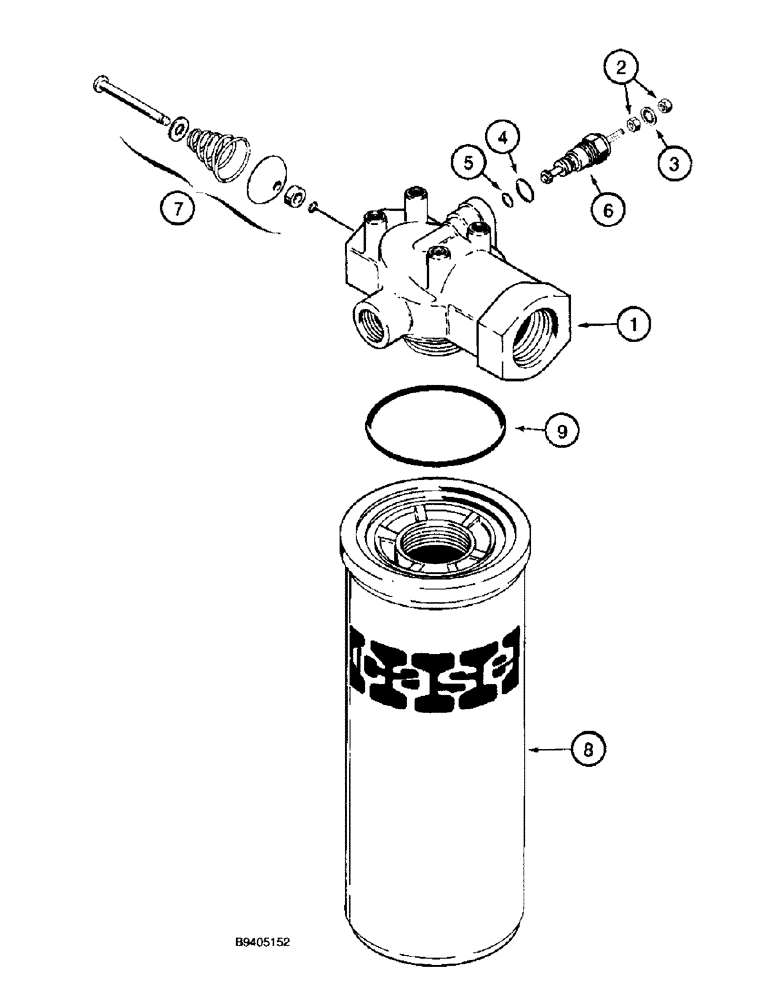

Запчасти Case 580L (8-136) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

122536A1

HYDRAULIC OIL FILTER

FILTER ASSEMBLY, hydraulic oil, Includes: Refs. 1-9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY, restriction, electric, Includes: Refs. 2-6 & N6941

1шт.

N6941

KIT

restriction indicator repair, order Ref. 2-5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER internal tooth lock, (3/16")

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Inner

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE bypass

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY, filter, Includes: Refs. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Filter to head -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
