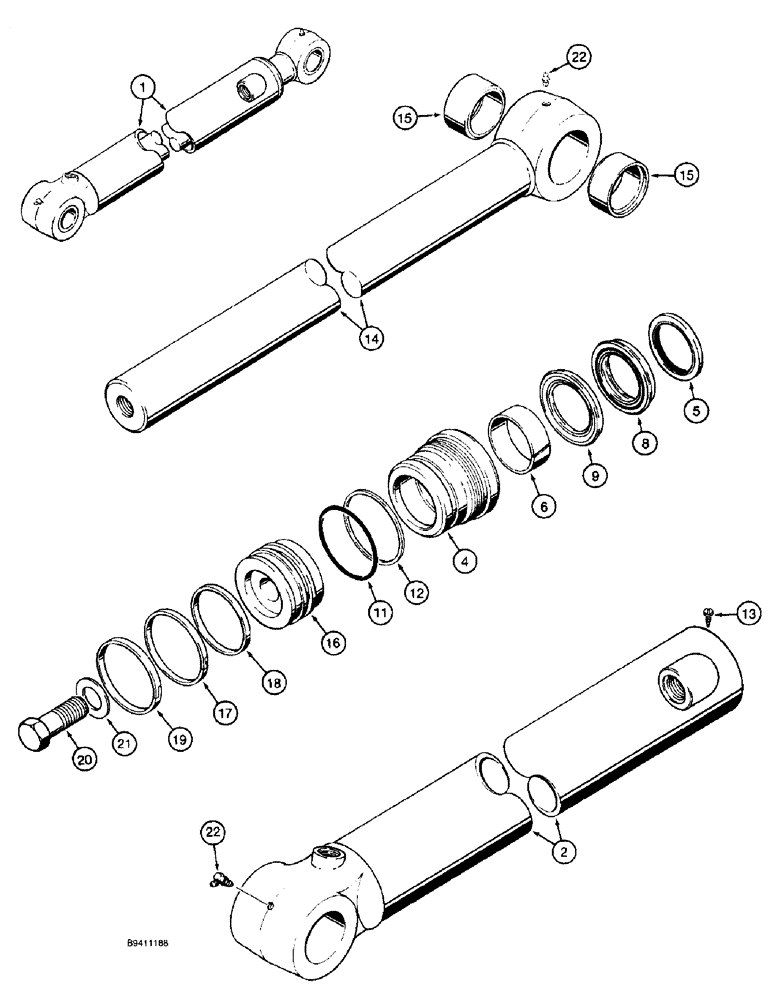

Запчасти Case 580L (8-152) - BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

128760A1

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 871.7mm Stroke

CYLINDER ASSEMBLY, bucket, 83 mm, 3-1/4 inch ID x 872 mm, 34-5816 inch diameter, Includes: Ref. 2, 13-14, 16-23, and gland assembly

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

128760A1R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

1

128760A1C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

2

128761A1

TUBE,82.5mm Bore Dia

cylinder

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes: Ref. 4-6, 11-12, and P/N 1542877C1

1шт.

4

128770A1

CYLINDER END CAP

GLAND cylinder

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER piston rod

1шт.

Part of seal kit 131750A2

1шт.

6

1346476C1

RING,57.15mm ID, Int

BUSHING center

1шт.

Part of seal kit 131750A2

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT seal, NSS, order 131750A1 kit below, Includes: Ref. 8-9

1шт.

Part of seal kit 131750A2

1шт.

8

1542929C1

SEAL,2.778mm OD

rod, NSS, order 131750A1 kit below

1шт.

9

1542928C1

SEAL,2.275" ID

buffer, NSS, order 131750A1 kit below

1шт.

11

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

Gland -233, 70 Duro, 2.859" ID x .139" Thk

1шт.

Part of seal kit 131750A2

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup

1шт.

Part of seal kit 131750A2

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

14

198033A1

PISTON ROD

ROD ASSEMBLY, piston, cylinder 57 mm, 2-1/4 inch diameter, Includes: Ref. 15

1шт.

15

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

piston rod, 50 x 60 x 25.5 mm long

1шт.

16

128772A1

PISTON

cylinder

1шт.

17

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit 131750A2

1шт.

18

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup, piston seal

1шт.

Part of seal kit 131750A2

1шт.

19

S109445

RING,82.55mm OD, Ext

wear, piston

1шт.

Part of seal kit 131750A2

1шт.

20

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

21

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flate, hardened, special, 1-1/4 inch

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

23

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

131750A2

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 11, 12, 17, 18, 19, and P/N 1542877C1 and instruction sheet, Replaces: 131750A1 kit

1шт.
