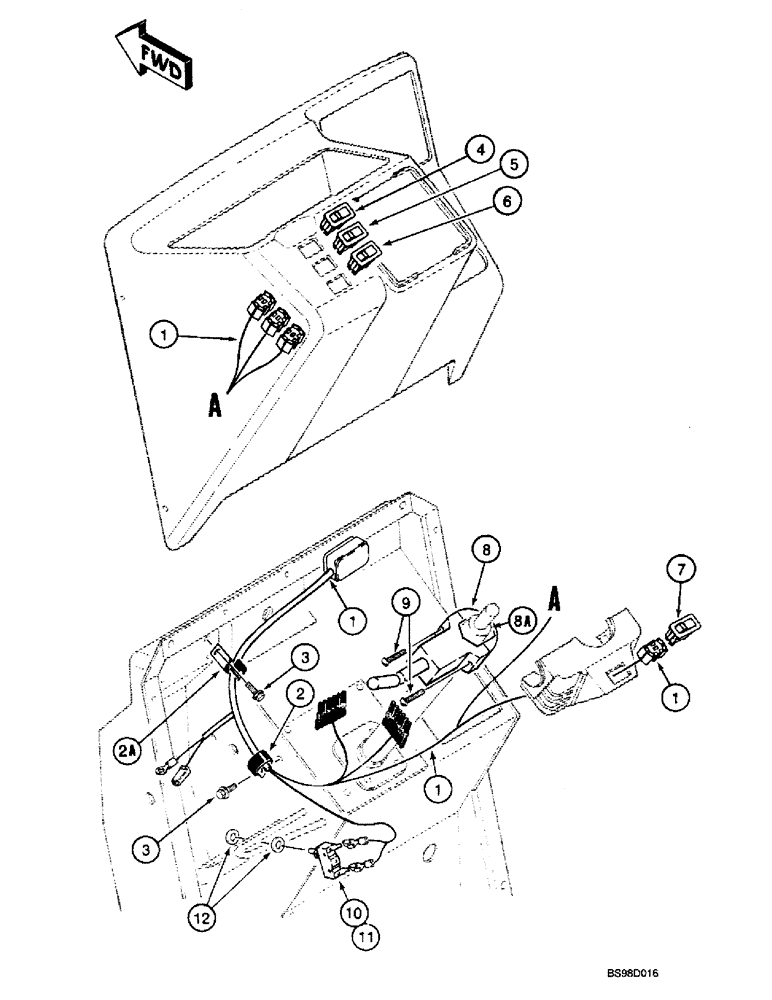

Запчасти Case 580L (4-16) - FRONT CONSOLE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

282014A2

HARNESS

front console

1шт.

2

D147383

CLIP,5/8" J

CLAMP J-type, 5/8 inch, harness to firewall, if used

1шт.

2

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, If used 1", Insul, 3/8" Bolt

1шт.

2a

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

3

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

BOLT hex flange, self tapping, 8 - 1.25 x 20 mm

2шт.

4

123538A1

LIGHT SWITCH

SWITCH rocker, dome lamp, if used, see Figure 4-22 for plug used in place of switch

1шт.

5

122736A1

FLASHER SWITCH

SWITCH rocker, hazard, flasher lamps

1шт.

6

131691A1

ROCKER SWITCH

rocker, turn signal

1шт.

7

122740A1

ROCKER SWITCH

rocker, horn

1шт.

8

278328A1

SWITCH

LEVER shuttle shift, transmission, forward/neutral/reverse switch

1шт.

8a

236521A1

HALF-COLLAR

COLLAR shuttle lever, Includes: clamp and two nuts

1шт.

279520A1

DUST CAP

BOOT rubber, handle, shuttle shift lever, not shown

1шт.

9

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

Use with 345-49 Loctite 242, No longer used, Order 558-100 Cross Pan Hd, M5 x 35

2шт.

9

558-100

SCREW

machine, pan Phillips, 5 - 0.8 x 30 mm, Includes blue Scotchgrip, use with 345-49 Loctite 242, no longer used, order 368238A1 screw

2шт.

9

368238A1

SCREW,Cross Pan Hd, M5 x 30mm, Chem Lock

pan head, special, 5 x 30 mm, Includes: locking material

2шт.

10

D148108

SWITCH

rocker, brake lamp

1шт.

11

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL Male

2шт.

12

495-81153

WASHER,.469" x 3/4" x .030"

flat, 15/32 x 3/4 x 1/32 inch

2шт.
