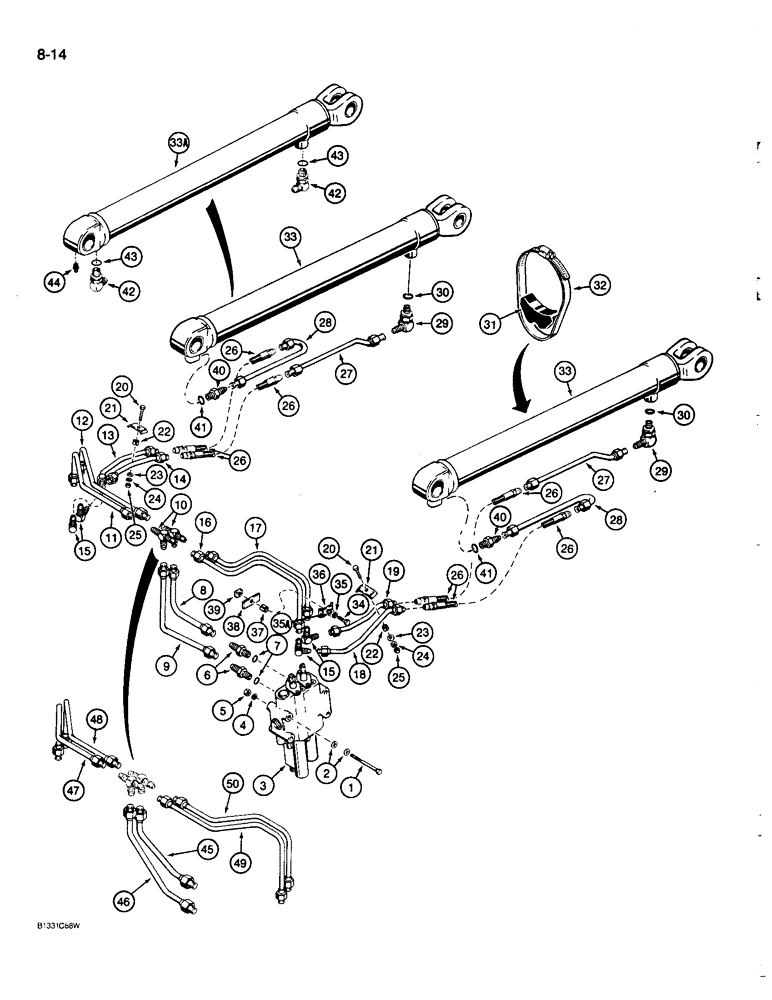

Запчасти Case 680L (8-014) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

- hex, 1/2 NC x 4-3/4 inch

3шт.

2

495-11053

WASHER,1/2", SAE

3-6шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figure 8-064 or 8-066

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

8

D141194

TUBE ASSY.

TUBE - lift spool upper port to tee, if used, Serial Range: -JJG0070870

1шт.

For tubes used on P.I.N. JJG0070870 and after see Ref. 45 through 50

1шт.

9

D141196

TUBE ASSY.

TUBE - lift spool lower port to tee, if used, Serial Range: -JJG0070870

1шт.

For tubes used on P.I.N. JJG0070870 and after see Ref. 45 through 50

1шт.

10

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- male, loader lift tubes

2шт.

11

D141228

TUBE ASSY.

TUBE - rear, at tee, to closed end of left-hand lift cylinder, if used, Serial Range: -JJG0070870

1шт.

For tubes used on P.I.N. JJG0070870 and after see Ref. 45 through 50

1шт.

12

D141226

TUBE ASSY.

TUBE - front, at tee, to rod end of left-hand lift cylinder, if used, Serial Range: -JJG0070870

1шт.

For tubes used on P.I.N. JJG0070870 and after see Ref. 45 through 50

1шт.

13

D141236

TUBE ASSY.

TUBE - at hose, to closed end of left-hand lift cylinder

1шт.

14

D141234

TUBE ASSY.

TUBE - at hose, to rod end of left-hand lift cylinder

1шт.

15

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- 90 degree

4шт.

16

D141208

TUBE ASSY.

TUBE - rear, at tee, to closed end of right-hand lift cylinder, if used, Serial Range: -JJG0070870

1шт.

For tubes used on P.I.N. JJG0070870 and after see Ref. 45 through 50

1шт.

17

D141206

TUBE ASSY.

TUBE - front, at tee, to rod end of right-hand lift cylinder, if used, Serial Range: -JJG0070870

1шт.

For tubes used on P.I.N. JJG0070870 and after see Ref. 45 through 50

1шт.

18

D141220

TUBE ASSY.

TUBE - at hose, to closed end of right-hand lift cylinder

1шт.

19

D141218

TUBE ASSY.

TUBE - at hose, to rod end of right-hand lift cylinder

1шт.

20

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

21

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

22

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- split, tube clamp

2шт.

23

495-21044

WASHER,3/8"

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

D141685

HOSE ASSY.

HOSE - 28-1/2" (720 mm) long, to lift cylinders

4шт.

27

L103146

TUBE,0.625" OD x 15.9, 1.65" L

- rod end of lift cylinders

2шт.

28

L103144

TUBE,0.625" OD x 19, 2.5" L

- closed end of lift cylinders

2шт.

29

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

31

D38648

BLOCK

SPACER - rubber, tube and cylinder

4шт.

32

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - tube to cylinder

4шт.

33

G103457

CYLINDER BLOCK

CYLINDER ASSEMBLY - loader lift, used prior to tractor P.I.N. JJG0070547, except for JJG0070523, JJG0070526, and JJG0070540, parts list Figure 8-104

2шт.

33a

G103073

CYLINDER ASSY.

CYLINDER ASSEMBLY - loader lift, used on tractor P.I.N. JJG0070523, JJG0070526, JJG0070540, and JJG0070547 and after, parts list Figure 8-106

2шт.

34

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

35a

495-21044

WASHER,3/8"

1шт.

36

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

37

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- split, tube clamp

2шт.

38

D141598

BAR

- spacer

1шт.

39

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

40

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, used with G103457 cylinder, Includes: Ref. 41

2шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

42

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, used with G103073 cylinder, Incl. Ref. 43

4шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch NPT

2шт.

45

D147073

TUBE ASSY.

TUBE - lift spool upper port to tee, if used, Start Serial: JJG0070870

1шт.

For tubes used prior to P.I.N. JJG0070870 see Ref. 8, 9, 11, 12, 16, and 17

1шт.

46

D147075

TUBE ASSY.

TUBE - lift spool lower port to tee, if used, Start Serial: JJG0070870

1шт.

For tubes used prior to P.I.N. JJG0070870 see Ref. 8, 9, 11, 12, 16, and 17

1шт.

47

D146813

TUBE ASSY.

TUBE - rear, at tee, to closed end of left-hand lift cylinder, if used, Start Serial: JJG0070870

1шт.

For tubes used prior to P.I.N. JJG0070870 see Ref. 8, 9, 11, 12, 16, and 17

1шт.

48

D146809

TUBE ASSY.

TUBE - front, at tee, to rod end of left-hand lift cylinder, if used, Start Serial: JJG0070870

1шт.

For tubes used prior to P.I.N. JJG0070870 see Ref. 8, 9, 11, 12, 16, and 17

1шт.

49

D146811

TUBE ASSY.

TUBE - rear, at tee, to closed end of right-hand lift cylinder, if used, Start Serial: JJG0070870

1шт.

For tubes used prior to P.I.N. JJG0070870 see Ref. 8, 9, 11, 12, 16, and 17

1шт.

50

D146807

TUBE ASSY.

TUBE - front, at tee, to rod end of right-hand lift cylinder, if used, Start Serial: JJG0070870

1шт.

For tubes used prior to P.I.N. JJG0070870 see Ref. 8, 9, 11, 12, 16, and 17

1шт.
