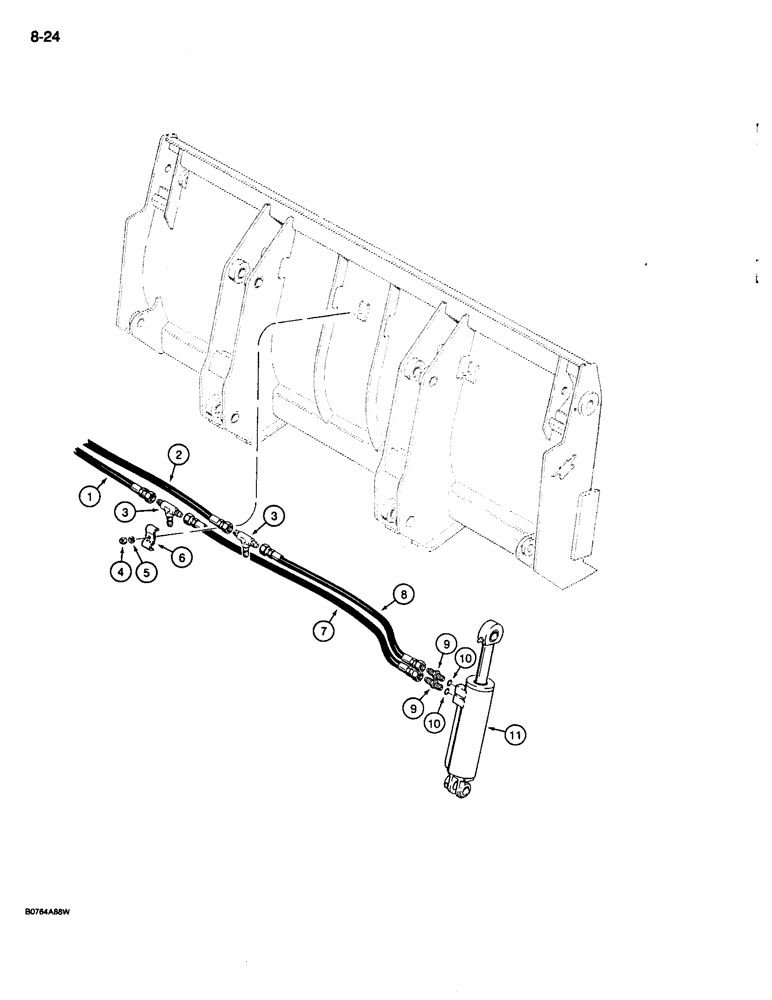

Запчасти Case 680L (8-024) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, AT CLAM BUCKET (08) - HYDRAULICS

1

100630A1

HOSE

36" (914 mm) long, lower left-hand (Replaces D143219)

1шт.

Ref #1 - When using the 100630A1 hose, item #9 (218-5066 adapter) is not required.

1шт.

2

D143218

HOSE

54" (1372 mm) long, upper left-hand, no longer available, order D143221 hose

1шт.

3

218-806

TEE,7/8"-14, 37 Degree, Blkhd

Hydraulic, clam cylinder hoses

2шт.

4

429-106

NUT,3/8"-16, G8

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

S64754

CLAMP - hose support

3шт.

7

100632A1

HOSE

53" (1346 mm) long, lower right-hand and upper (Replaces D143221) left-hand

1-2шт.

When using the 100632A1 hose, item #9 (218-5066 adapter) is not required. 11/28/95

1шт.

8

100631A1

HOSE ASSY.

37" (940 mm) long, upper right-hand (Replaces D143220)

1шт.

When using the 100631A1 hose, item #9 (218-5066 adapter) is not required. 11/28/95

1шт.

9

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, cylinder to hose, Incl. Ref. 10

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter

1шт.

11

D143217

CYLINDER ASSY.

Clam, parts list Figure 8-110

2шт.
