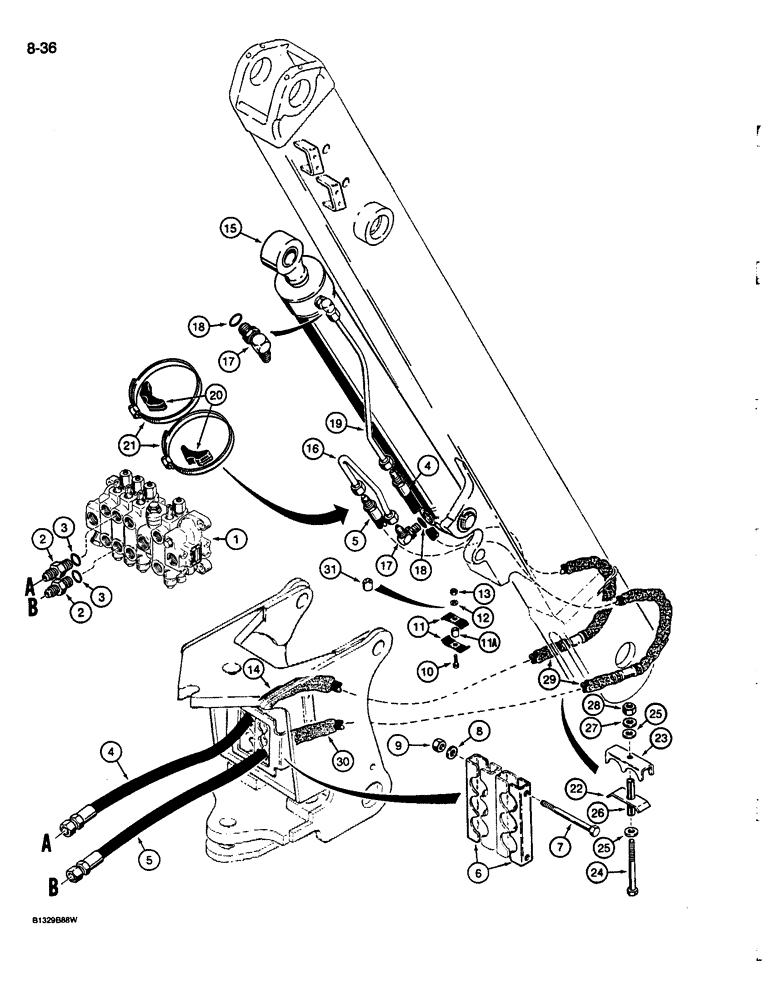

Запчасти Case 680L (8-036) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware see Figure 8-078

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

D148816

HOSE ASSY.

HOSE - 2475 mm long, backhoe control valve upper port to dipper cylinder rod end tube (replaces D141539 hose)

1шт.

5

D148817

HOSE ASSY.

HOSE - 2425 mm long, backhoe control valve lower port to dipper cylinder closed end tube (replaces D141540 hose)

1шт.

6

D140847

CLAMP

- hose, at swing tower

2шт.

7

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch

2шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces lock washer 1/2", SAE

2шт.

9

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, replaces lock washer and hex nut

2шт.

10

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

11

L78057

CLAMP

- hose

2шт.

11a

D33552

BUSHING

SPACER - hose clamp

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Replaces lock washer 3/8", SAE

1шт.

13

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, replaces lock washer and hex nut

1шт.

14

D144243

SLEEVE

- hose protection, upper dipper hose to upper bucket hose

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - dipper, for correct assembly and components, see Figure 8-122 or 8-124

1шт.

16

L54749

TUBE,15, 2.4" L

- dipper cylinder, closed end

1шт.

17

L114091

FITTING

ELBOW - 90 degree, special, Includes: Ref. 18

2шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

19

L58145

TUBE,0.75" OD x 34.3, 3" L

- dipper cylinder, rod end

1шт.

20

D38648

BLOCK

SPACER - rubber, tube clamp

2шт.

21

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to dipper cylinder

2шт.

22

D141293

CLAMP

- hose

1шт.

23

D137599

CLAMP

- hose

1шт.

24

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

25

195-533

WASHER,1/2", SAE

2шт.

26

D144418

SPACER

- hose clamp

1шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces lock washer 1/2", SAE

1шт.

28

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, replaces lock washer and hex nut

1шт.

29

D144244

SLEEVE

- hose protection

2шт.

30

D149071

SLEEVE

- hose protection, lower dipper hose

1шт.

31

D34242

SPACER

- hose clamp, between bracket on boom and first clamp

1шт.
