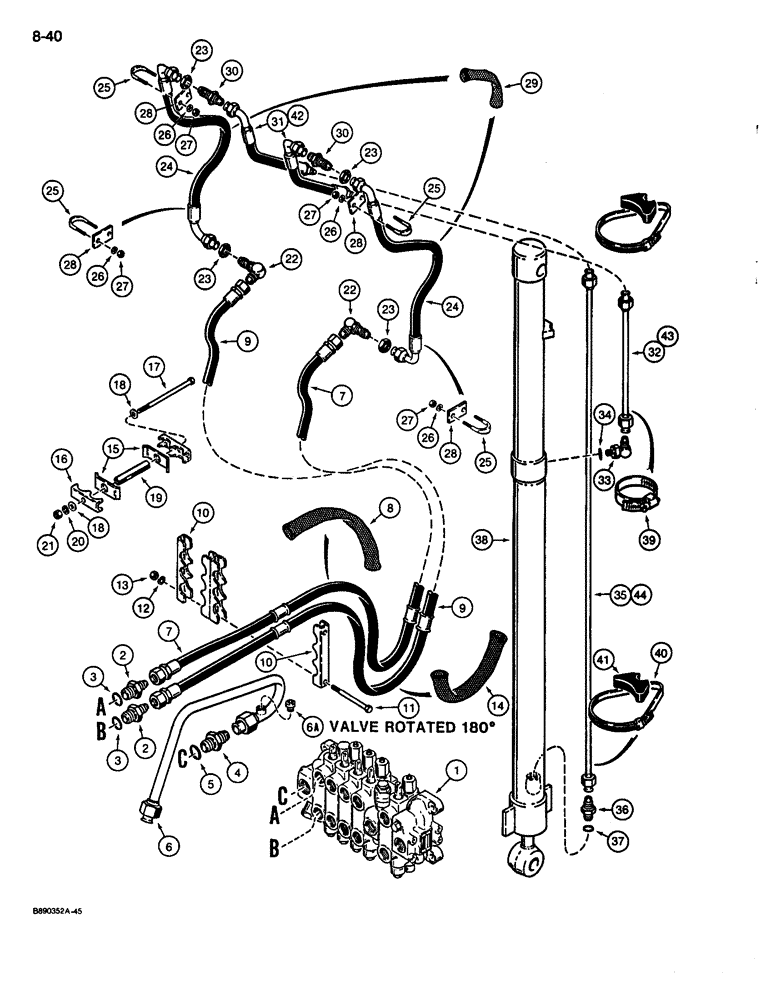

Запчасти Case 680L (8-040) - BACKHOE EXTENDABLE DIPPER CYLINDER HYDRAULIC CIRCUIT, HIGH PROFILE MODELS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, extendable dipper models, for correct assembly and components and mounting hardware see Figure 8-078

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, 1-1/16 NF flare x 1-1/16 NF, cylinder hoses at backhoe control valve, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, backhoe return tube at control valve, Incl. Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

6

D143889

TUBE ASSY.

TUBE - backhoe return, extendable dipper models, Includes: Ref. 6A

1шт.

6a

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 PT

1шт.

7

D148820

HOSE ASSY.

HOSE - 3330 mm long, backhoe control valve extendable dipper upper port to closed end of extendable dipper cylinder (replaces D144247 hose)

1шт.

8

D144243

SLEEVE

- hose protection, upper

1шт.

9

D148821

HOSE ASSY.

HOSE - 3292 mm long, backhoe control valve extendable dipper lower port to rod end of extendable dipper cylinder (replaces D144248 hose)

1шт.

10

D140847

CLAMP

- hose, at swing tower

2шт.

11

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

D144244

SLEEVE

- hose protection, extendahoe hose at lower boom

1шт.

15

D141293

CLAMP

- hose, Serial Range: mounts-dipper

2шт.

16

D137599

CLAMP

- hose

1шт.

17

113-2420

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex head, 1/2"-13 NC x 7-1/2", plated

1шт.

18

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

19

D141386

SPACER

- hose clamp

1шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

22

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

23

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16 NF

4шт.

24

D144282

HOSE ASSY.

HOSE - 55-1/8" (1400 mm) long, to extendable dipper cylinder from upper boom end to boom end of dipper

2шт.

25

L104253

U-BOLT

- hose, at upper boom end and boom end of dipper

4шт.

26

195-521

WASHER,5/16", SAE

- flat, 5/16 inch

8шт.

27

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

28

D144201

PLATE

SPACER - plate, Serial Range: hose-bracket

1шт.

29

D144958

SLEEVE

- hose protection, extendable dipper and bucket cylinder hoses at upper boom

2шт.

Ref #29 - D144958 hose protection sleeve - This part is 200mm long. Order D144375 which is 700mm long and cut to length.

1шт.

30

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - FIT STL BULKHD .75MJ .75MJ

2шт.

31

D144286

HOSE ASSY.

HOSE - 12-7/16" (315 mm) long, to extendable dipper cylinder tubes, used with Ref. 32 and 35 tubes

2шт.

32

L103656

TUBE ASSY.,0.625" OD x 17.8" L

TUBE - 17-13/16 inch long, from hose to extendable dipper cylinder, closed end, used with Ref. 31 hose

1шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

L103658

TUBE ASSY.,0.625" OD x 69.8" L

TUBE - 69-13/16 inch long, from hose to extendable dipper cylinder, rod end, used with Ref. 31 hose

1шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, 7/8 NF flare x 7/8 NF, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

REF

INSTRUCTION

CYLINDER ASSEMBLY - extendable dipper, for correct assembly and components, see Figure 8-130

1шт.

39

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - L103656 tube, if used

1шт.

40

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - L103658 tube

1-2шт.

41

D38648

BLOCK

SPACER - rubber

1-2шт.

42

D149836

HOSE ASSY.

HOSE - 600 mm long, to extendable dipper cylinder tubes, used with Ref. 43 and 44 tubes

2шт.

43

D149854

TUBE ASSY.

TUBE - 5-29/32 inch long, from hose to extendable dipper cylinder, closed end, used with Ref. 42 hose

1шт.

44

D149852

TUBE ASSY.

TUBE - 57-3/8 inch long, from hose to extendable dipper cylinder, rod end, used with Ref. 42 hose

1шт.
