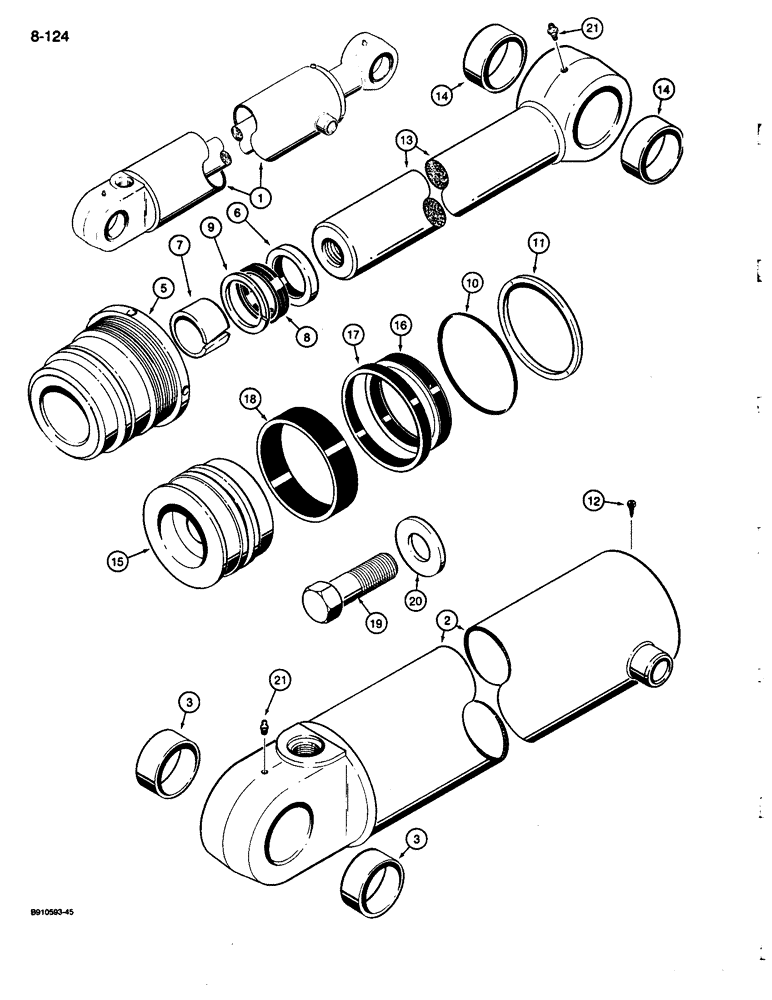

Запчасти Case 680L (8-124) - BACKHOE DIPPER CYLINDER, 1345994C1 (08) - HYDRAULICS

1

1345994C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/2" (114 mm) ID x 39-13/16" (1011 mm) stroke, dipper, Includes: Ref. 2 - 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1345995C1

TUBE,1245 mm Length

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

1343579C1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N 1343707C1.

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- gland

1шт.

Part of seal kit P/N 1343707C1.

1шт.

8

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N 1343707C1.

1шт.

8

G100780

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N 1343707C1.

1шт.

10

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

Gland -243, 70 Duro, 4.109" ID x .139" Thk

1шт.

Part of seal kit P/N 1343707C1.

1шт.

11

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N 1343707C1.

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, slotted, self-tapping, No. 8 NC x 3/8 inch

1шт.

13

1345998C1

ROD

ASSEMBLY - piston, 2-1/2" (64 mm) OD, Includes: Ref. 14

1шт.

14

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

15

1346004C1

PISTON

- cylinder

1шт.

16

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

RING - loader

1шт.

Part of seal kit P/N 1343707C1.

1шт.

17

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

- rectangular

1шт.

Part of seal kit P/N 1343707C1.

1шт.

18

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear

1шт.

Part of seal kit P/N 1343707C1.

1шт.

19

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex, 1-1/2 NF x 3-1/2 inch, grade 8

1шт.

20

G104990

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

1343707C1

SEAL

KIT - seal, Includes: Ref. 6, 7, 8 (P/N G109228), 9 - 11 and 16 - 18

1шт.
