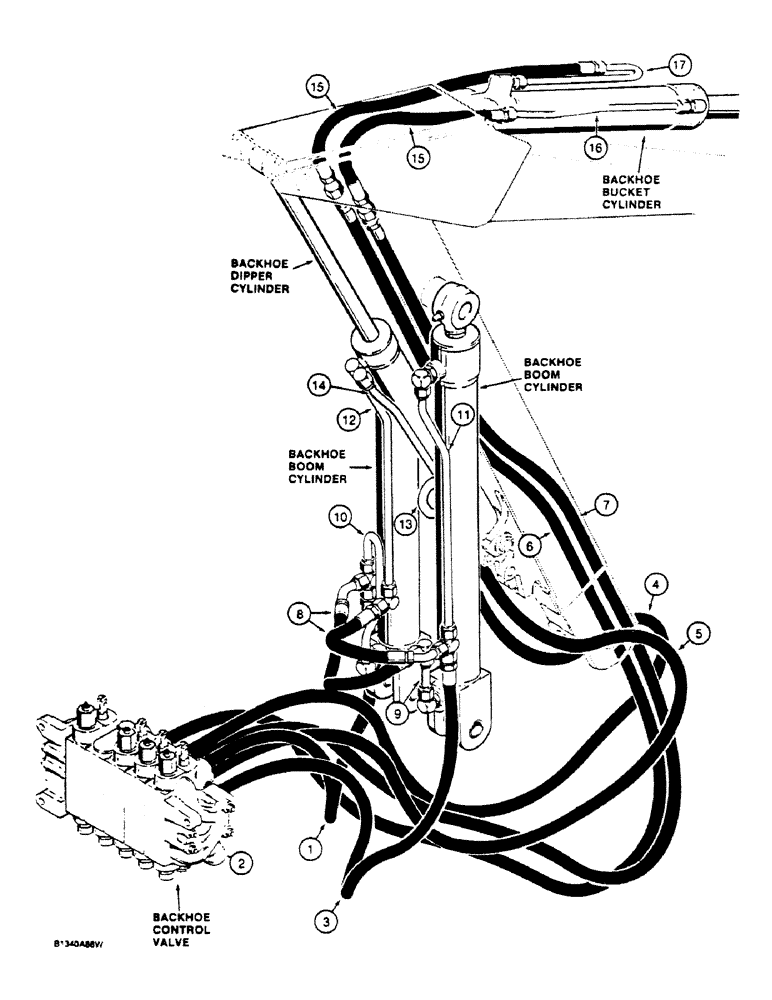

Запчасти Case 680L (1-22) - PICTORIAL INDEX, BACKHOE HYDRAULICS, BOOM, DIPPER, AND BUCKET CYLINDERS (00) - PICTORIAL INDEX

1

Hose at backhoe control valve boom spool upper port to left-hand boom cylinder closed end port tube, Page 8-33

1шт.

2

Tube at backhoe control valve boom spool lower port to hose, Page 8-33

1шт.

3

Hose at backhoe control valve boom spool lower port tube to right-hand boom cylinder rod end tube, Page 8-33

1шт.

4

Hose at backhoe control valve dipper spool upper port to dipper cylinder rod end tube, Page 8-37

1шт.

5

Hose at backhoe control valve dipper spool lower port to dipper cylinder closed end tube, Page 8-37

1шт.

6

Hose at backhoe control valve bucket spool upper port to boom, Page 8-39

1шт.

7

Hose at backhoe control valve bucket spool lower port to boom, Page 8-39

1шт.

8

Boom cylinder crossover hoses, Page 8-35

1шт.

9

Tube at right-hand boom cylinder closed end, Page 8-35

1шт.

10

Tube at left-hand boom cylinder closed end, Page 8-35

1шт.

11

Tube at right-hand boom cylinder rod end, Page 8-33

1шт.

12

Tube at left-hand boom cylinder rod end, Page 8-33

1шт.

13

Tube at dipper cylinder closed end, Page 8-37

1шт.

14

Tube at dipper cylinder rod end, Page 8-37

1шт.

15

Hose to bucket cylinder tubes, Page 8-39

1шт.

16

Tube at bucket cylinder rod end port, Page 8-39

1шт.

17

Tube at bucket cylinder closed end port, Page 8-39

1шт.
