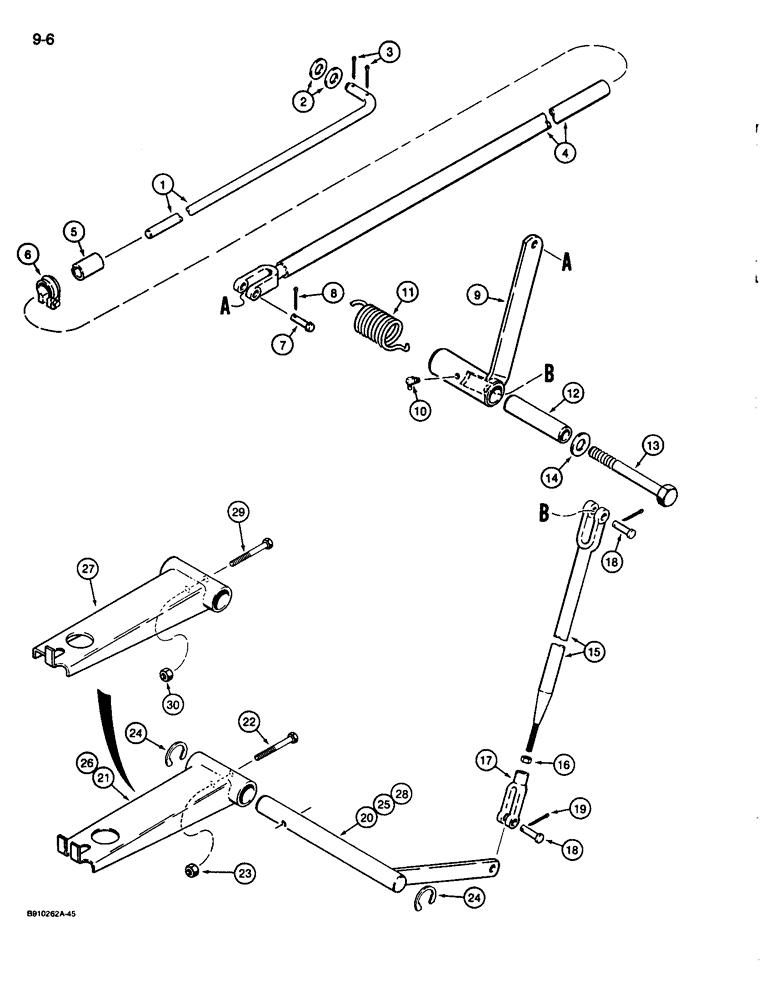

Запчасти Case 680L (9-006) - LOADER ANTIROLLBACK CONTROL (09) - CHASSIS/ATTACHMENTS

1

D133376

ROD

- antirollback

1шт.

2

495-11053

WASHER,1/2", SAE

2шт.

3

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

D133377

TUBE

- antirollback rod to upper pivot lever

1шт.

5

D129972

SLEEVE CYLINDER

SLEEVE - clamp

1шт.

6

D71880

CLAMP,22.23mm

- tube to rod, includes bolt, washer, and nut which are not serviced separately

1шт.

7

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

8

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

9

D141096

LEVER

- upper pivot

1шт.

10

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4"-28 NF taper

1шт.

11

D72099

SPRING

- upper pivot

1шт.

12

D86652

SLEEVE

- upper pivot lever

1шт.

13

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

14

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened, plated

1шт.

15

D141097

ROD

- connecting, lower pivot, Serial Range: lever-bellcrank

1шт.

16

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

17

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8"

1шт.

18

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

19

132-320

COTTER PIN,3/32" x 3/4"

PIN - cotter, 3/32" x 5/8", plated

2шт.

20

D141100

CRANK

PIN - pivot, used with D141101 bellcrank prior to tractor P.I.N. JJG0070511

1шт.

21

D141101

CRANK

BELLCRANK - antirollback control, at loader control valve, used with D141100 pin prior to tractor P.I.N. JJG0070511

1шт.

22

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2 inch

1шт.

23

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8"-16 NC, plated

1шт.

24

L108524

RING

- retaining, bellcrank, used as a spacer

1шт.

25

D146122

CRANK LEVER

PIN - pivot, used with D146124 bellcrank on tractor P.I.N. JJG0070511 and after, no longer available, order D150617 bellcrank assembly, shown below

1шт.

26

D146124

CRANK LEVER

BELLCRANK - antirollback control, at loader control valve, used with D146122 pin on tractor P.I.N. JJG0070511 and after, no longer available, order D150617 bellcrank assembly, shown below

1шт.

D150617

CRANK LEVER

BELLCRANK ASSEMBLY - antirollback control at loader valve, replaces Ref. 25, D146122 pin and Ref. 26, D146124 bellcrank, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

BELLCRANK - antirollback control

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - pivot

1шт.

29

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch

1шт.

30

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.
