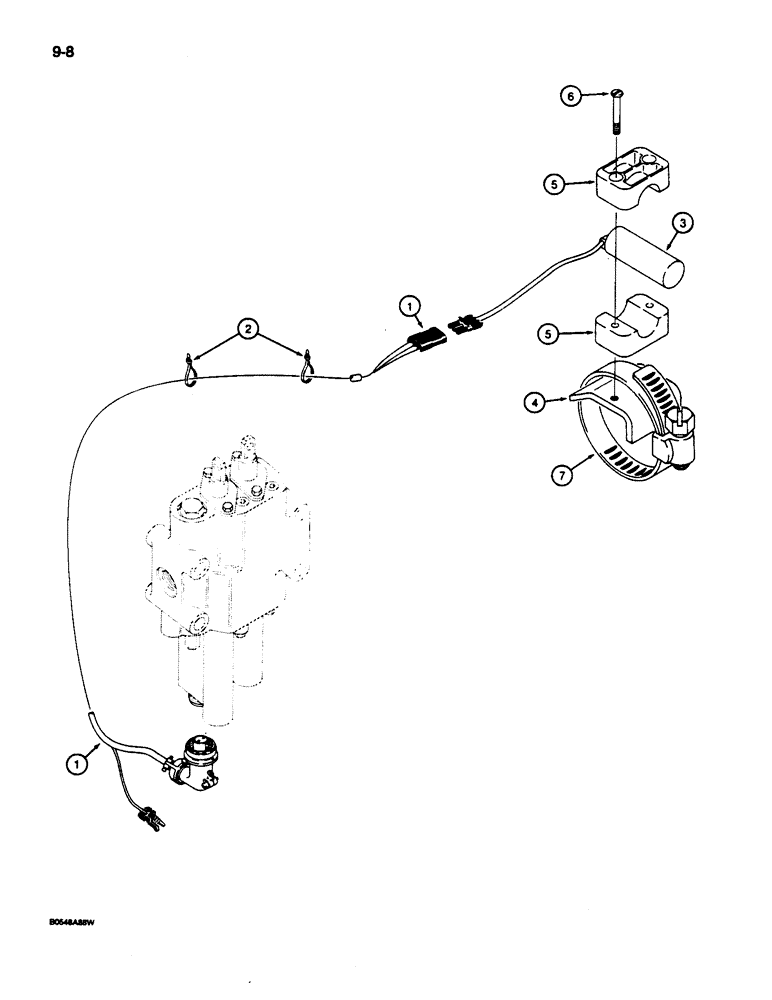

Запчасти Case 680L (9-008) - LOADER RETURN-TO-DIG CONTROL (09) - CHASSIS/ATTACHMENTS

1

D150020

HARNESS

- return-to-dig, switch to loader control valve

1шт.

2

D147773

CLAMP

STRAP - tie, harness

8шт.

3

D137276

SWITCH

- return-to-dig

1шт.

Ref #3 - D137276 switch - Replaced by switch kit (part nbr 112431A1). This kit consists of : (2) L18337 straps, (1) 112007A1 brkt, (1) 112429A1 switch, (1) 112430A1 clamp, (1) 214-3172 clamp, (2) 413-432 bolts, (2) 492-11025 washers, (1) 8-80800 instr. sheet.

1шт.

4

D132339

BRACKET

- switch mounting

1шт.

5

R48091

CLAMP

- two-piece, switch, Serial Range: mounting-bracket

1шт.

6

71-424

SCREW

- Fillister head, 1/4"-20 NC x 1-1/2"

2шт.

7

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - heavy duty drive type, includes hardware

1шт.
