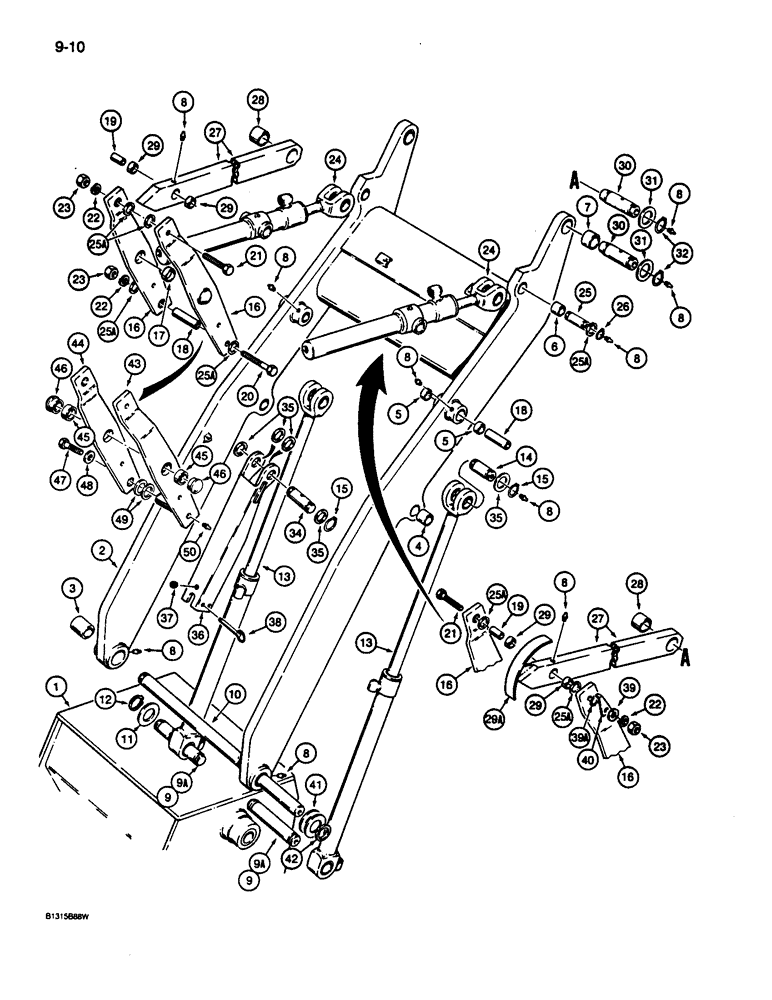

Запчасти Case 680L (9-010) - LOADER LIFT FRAME D141737 AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D141282

CHASSIS

ASSEMBLY - parts list Figure 9-082

1шт.

2

D141737

ARM/LIFTING DEVICE

FRAME ASSEMBLY - loader lift, Includes: Ref. 3 - 7

1шт.

3

D141731

BUSHING

- 2-17/64 ID x 2-3/4 OD x 3-1/8 inch long, lift frame at chassis

2шт.

4

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- 1-3/4 ID x 2-1/8 OD x 1-1/2 inch long, at lift cylinders

2шт.

5

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- 1-1/2 ID x 1-7/8 OD x 11/16 inch long, lift frame at bucket linkage

4шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- 1-1/2 ID x 1-7/8 OD x 1-1/2 inch long, lift frame at bucket cylinders

2шт.

7

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- 2" ID x 2-1/2" OD x 1-1/2 inch long, lift frame at bucket

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

14шт.

9

D45523

PIN,50.8mm OD x 276.35mm L

- 10-7/8" long, lower, lift cylinder pivot shaft, if used

2шт.

9a

D42911

PIN

- 10-1/2" long, lower, lift cylinder pivot shaft, if used

2шт.

10

D129491

SHAFT

PIN - upper, lift arm pivot shaft

1шт.

11

195-2168

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16", special

1шт.

12

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

13

G103457

CYLINDER BLOCK

CYLINDER ASSEMBLY - loader lift, parts list Figure 8-104

2шт.

14

D34658

PIN,44.45mm OD x 101.6mm L

- lift cylinder mounting to lift frame, right-hand side only

1шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

16

L103392

DRAG LINK

LINK ASSEMBLY - includes bushings, bucket link to lift arm, no longer available, for service order D143907 inner link and D144071 outer link, Ref. 43 and 44, Includes: Ref. 17

4шт.

17

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link at cylinder

1шт.

18

L57197

AXLE PIN

SPACER - link, used with L103392 link, item 16

2шт.

19

L74594

SPACER

- link

2шт.

20

113-738

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex head, 3/4"-10 NC x 7", grade 8, plated, if used

2шт.

21

113-777

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- hex head, 3/4"-10 NC x 4-1/2", grade 8, plated

2шт.

22

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2-4шт.

23

129-138

NUT,3/4"-10, G8

2-4шт.

24

G101220

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket tilt, parts list Figure 8-108

2шт.

25

D34656

PIN,38.1mm OD x 101.6mm L

- bucket cylinder rod end to lift frame

2шт.

25a

195-2138

WASHER,1 17/32" x 2 1/16" x .109"

- flat, 1-17/32", special, if used

1шт.

26

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

27

L108026

DRAG LINK

LINK ASSEMBLY - bucket, Includes: Ref. 28 and 29

2шт.

28

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- link, at bucket

1шт.

29

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- link, at bellcrank

2шт.

29a

L108411

BRACKET

- decal mounting, welded to right-hand link, see Figure 9-162 for D139863 decal

1шт.

30

L105080

AXLE PIN

PIN - bucket link and lift, Serial Range: arm-bucket

4шт.

31

195-2168

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16", special, used with item 30

1шт.

32

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin, used with item 30 #200, Ext

8шт.

34

L78791

AXLE PIN

PIN - lift cylinder and support strut mounting, left-hand side only

1шт.

35

195-2176

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4", plated, special

1шт.

36

D141760

SUPPORT

STRUT - loader support, left-hand side loader lift frame

1шт.

37

D132350

GROMMET

- rubber

1шт.

38

D120675

HITCH PIN

PIN - hitch

1шт.

39

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, 3/4" 13/16" x 1 1/2" x .134", HDN

1шт.

39a

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

40

L107670

LEVEL

INDICATOR - bucket level, right-hand side

1шт.

41

195-2178

WASHER,2 5/16" x 3" x .134"

- flat, 2-1/4", plated

4шт.

42

L101691

RING, SNAP

RING - retaining

2шт.

43

D143907

ARM ASSY.

LINK ASSEMBLY - inner, bucket link to lift arm, Includes: Ref. 45 and 46

2шт.

44

D144071

ARM ASSY.

LINK ASSEMBLY - outer, bucket link to lift arm, Includes: Ref. 45 and 46

2шт.

45

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- D143907 or D144071 link

1шт.

46

NSS

NOT SOLD SEPARAT

CAP - one per link

1шт.

47

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, grade 8

2шт.

48

196-33

WASHER,29/32" x 1 1/2" x .134", HDN

- flat, hardened

2шт.

49

195-2186

WASHER,1 5/8" x 2 1/4" x .065"

- flat, 1-9/16 ID x 2-1/4 OD x 1/16

1шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT, straight

2шт.
