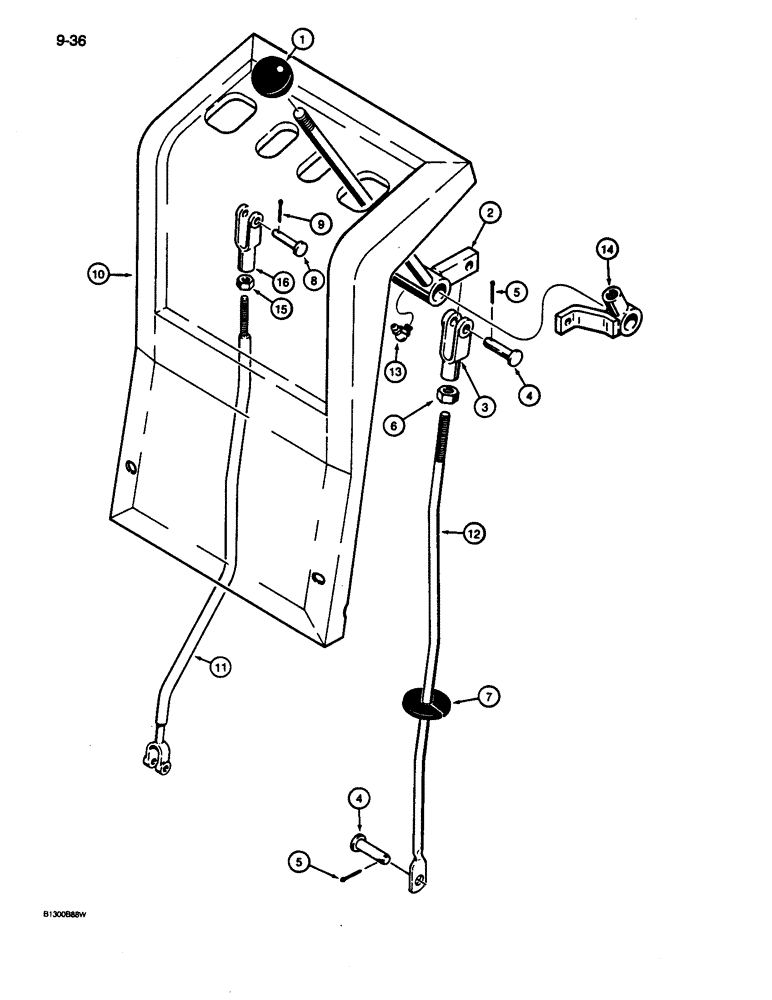

Запчасти Case 680L (9-036) - BACKHOE EXTENDABLE DIPPER CONTROL, FOOT SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

L108117

HANDLE

LEVER - control, extendahoe

1шт.

3

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated, rod end 3/8"-24

1шт.

4

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

5

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8"-24 NF, plated

1шт.

7

L109751

SEAL

SEAL - control rod

1шт.

8

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

9

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

10

REF

INSTRUCTION

COVER - control tower, see Figure 9-026

1шт.

11

L102930

ROD

- stabilizer, left-hand, see Figure 9-028 Ref. 32 for rod used on models without extendable dipper

1шт.

12

D141621

ROD

- bucket, dipper, boom, and extendahoe dipper, see Figure 9-028 Ref. 24 for rods used on models without extendable dipper

4шт.

13

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4"-28 NF taper

1шт.

14

D87834

LEVER

- right-hand stabilizer

1шт.

15

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

16

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - 5/16", adjustable, rod end

1шт.
