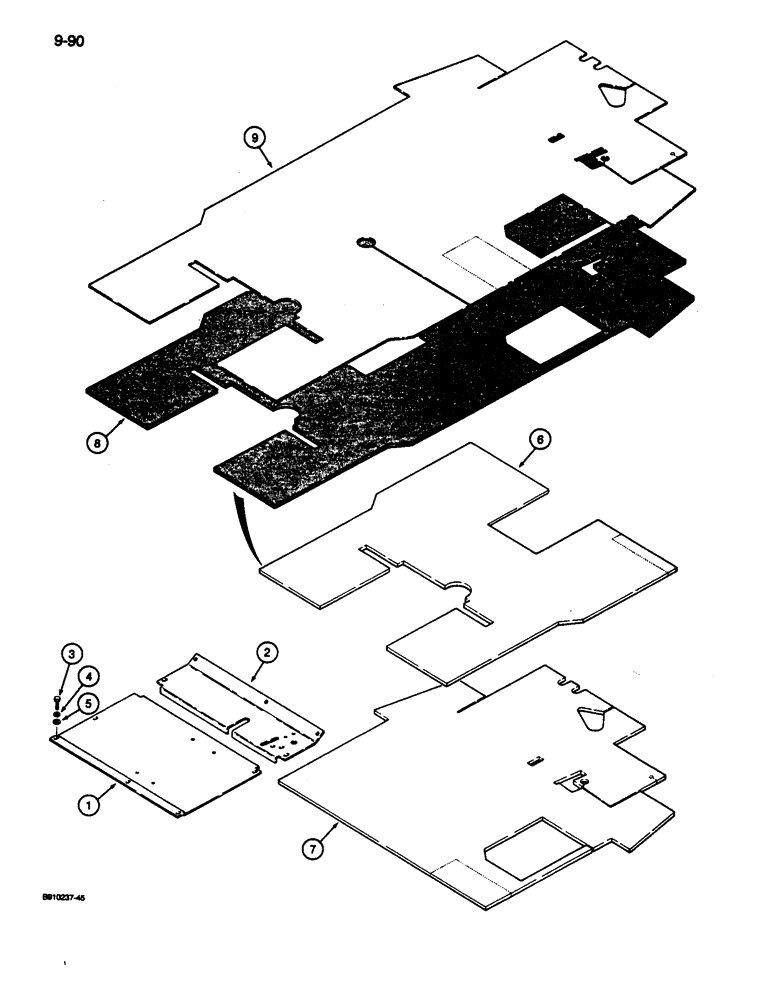

Запчасти Case 680L (9-090) - FLOOR PLATES AND MATS (09) - CHASSIS/ATTACHMENTS

1

D138924

PLATE

- floor, main, removable

1шт.

2

D143443

PLATE

- floor, small, foot controls

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

5

195-104

WASHER,3/8"

- flat, , plated 3/8"

7шт.

6

D140604

FLOOR MAT

FLOORMAT - rear, no longer available, order item 8, D141936 pad and item 9, D145318 one piece floormat

1шт.

7

D140598

FLOOR MAT

FLOORMAT - front, no longer available, order item 8, D141936 pad and item 9, D145318 one piece floormat

1шт.

8

D141936

FLOOR MAT

PAD - floormat, one piece, use with D145318 floormat

1шт.

9

D145318

FLOOR MAT

FLOORMAT - one piece, use with D141936 pad

1шт.
