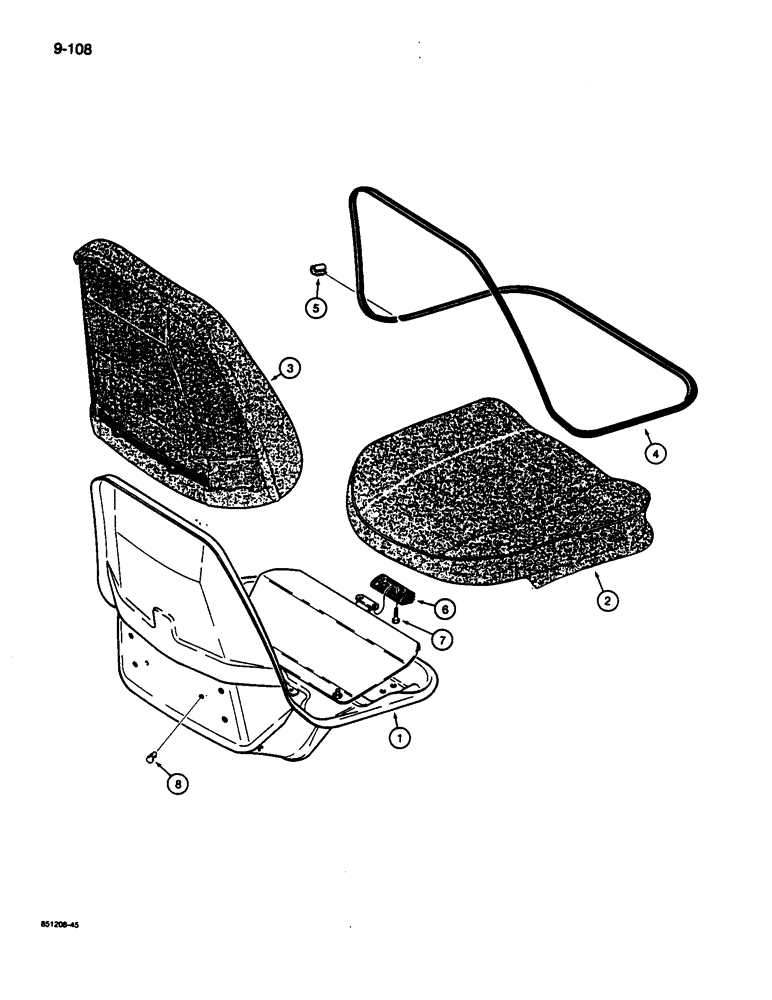

Запчасти Case 680L (9-108) - SUSPENSION SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D127367

SEAT

ASSEMBLY - suspension, vinyl, three-position adjustable seat cushion, for seat support see Figure 9-112, for seat adjuster assembly, see Figure 9-114, Includes: Ref. 1 - 8

1шт.

D127366

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, three-position adjustable seat cushion, for seat support see Figure 9-112, for seat adjuster assembly, see Figure 9-114, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N9258

CUSHION ASSY.

CUSHION - seat, vinyl, includes N7802 clip kit, see below

1шт.

2

N9237

SUPPORT ASSY.

CUSHION - seat, cloth, includes N7802 clip kit, see below

1шт.

3

N9259

BACKREST

- seat, vinyl, includes N7802 clip kit, see below

1шт.

3

N9238

CUSHION

BACKREST - seat, cloth, includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER - strip, brown, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

N9239

HANDLE

- cushion adjustment

1шт.

7

182-579

SCREW - machine, pan head slotted, 1/4 NC x 7/8 inch

2шт.

8

NSS

NOT SOLD SEPARAT

RIVET - plastic

2шт.

345-44

ADHESIVE

- pad retaining, in a can, 23 fl ounces (680 ml), not shown

1шт.

N7802

CLIP

KIT - clip, includes item 5 clip above plus 6 additional narrow clips

1шт.
