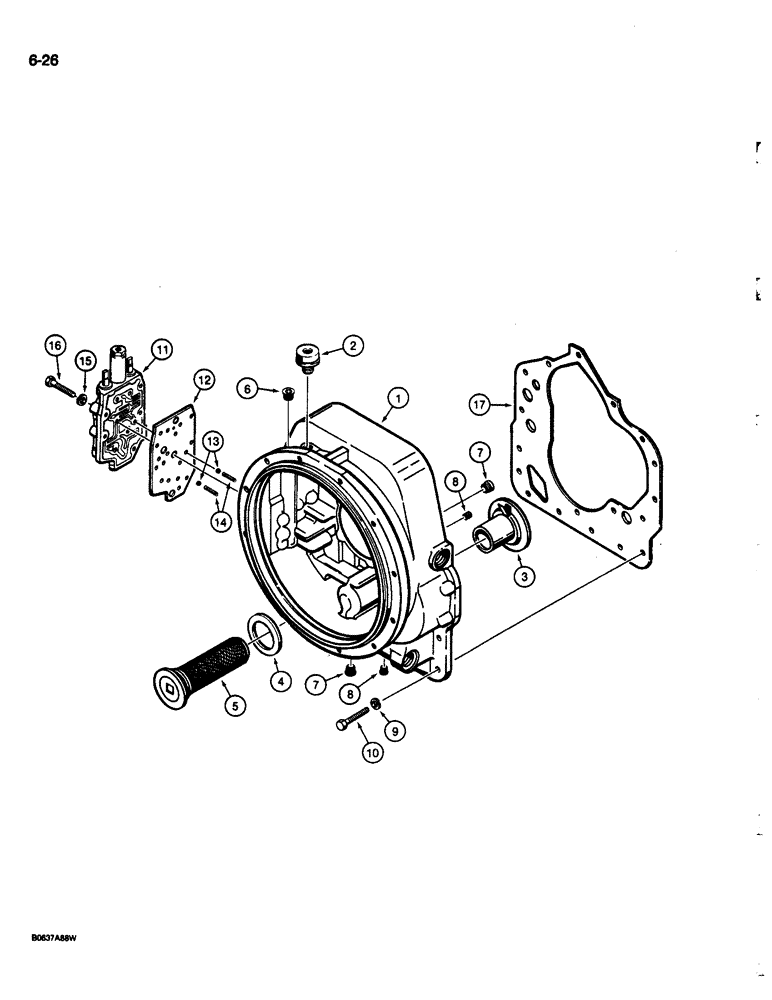

Запчасти Case 680L (6-26) - TORQUE CONVERTER HOUSING AND CONTROL VALVE, TWO WHEEL AND FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two wheel and four wheel drive, see Figure 6-22 for transmission options, parts list Figures 6-22 through 6-46, Includes: Ref. 1 - 17 on this figure

1шт.

1

D142542

HOUSING

- torque converter

1шт.

2

N7134

BREATHER

- air, torque converter

1шт.

3

E114312

SLEEVE

- torque converter housing

1шт.

4

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- screen

1шт.

5

L33482

FILTER SCREEN

SCREEN - filter

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

2шт.

8

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

2шт.

9

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

10

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

11

N14399

CHECK VALVE

VALVE ASSEMBLY - control, forward and reverse, parts list Figure 6-44

1шт.

12

E114308

GASKET

- control valve

1шт.

13

211-210

BALL,3/8" Dia

- 3/8", grade 25, chrome alloy steel

2шт.

14

E114309

SPRING

- detent

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

9шт.

17

D142595

GASKET

- torque converter, Serial Range: housing-transmission

1шт.
