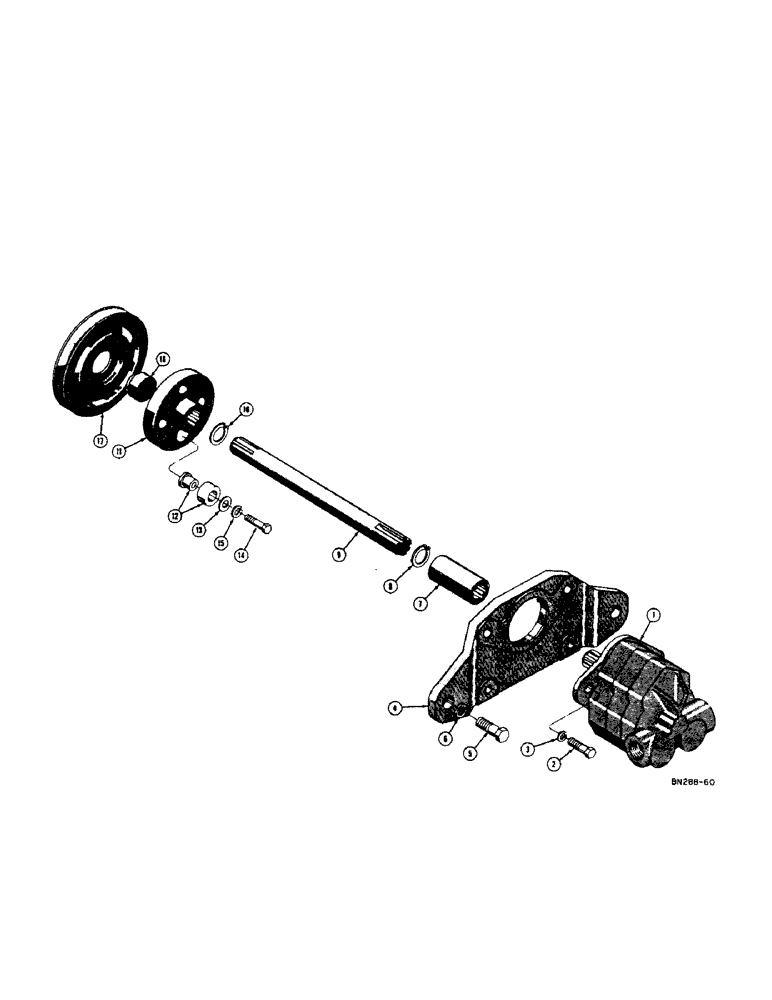

Запчасти Case 320 (12[1]) - BULL DOZER BLADE ATTACHMENT, LOADER-BACKHOE HYDRAULIC PUMP DRIVE (00) - COMPLETE MACHINE

1

31615

CAP

PUMP - hydraulic, 15 G.P.M. (Loader) (See Figure 58 for breakdown)

1шт.

2

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8-24 NF x 1-1/2

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

1

31614

PUMP - hydraulic, 19 G.P.M. (Loader-backhoe) (See Figure 60 for breakdown) Use D21319

1шт.

D21319

PUMP - hydraulic, 19 G.P.M. (Loader-backhoe) (See Figure 62 for breakdowns)

1шт.

D26066

PUMP - hydraulic, heavy duty (Loader-backhoe) (See Figure 64 for breakdown)

1шт.

2

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-20 NF x 2

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

36283

BRACKET - mounting, pump

1шт.

5

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

36280

COUPLING

- hydraulic pump to drive shaft

1шт.

8

36281

X

SNAP RING - coupling, pump drive shaft

1шт.

9

36278

GEAR

- drive, hydraulic pump

1шт.

10

25121

SNAP RING,#100, Ext

SNAP RING - coupling (If used)

1шт.

11

G36217

HUB ASSY.

COUPLING - flexible, crankshaft pulley to pump drive shaft

1шт.

12

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

13

VT3340

X

WASHER - bolt, flexible coupling (3/4" I.D. x 29/64" O.D. x 16 ga.)

4шт.

14

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

HHCS - 7/16-13 NC x 1-1/2

4шт.

15

92-7

LOCK WASHER,7/16"

4шт.

16

G11263

NUT

- pulley, crankshaft

1шт.

17

G1162

X

PULLEY - drive, fan

1шт.
