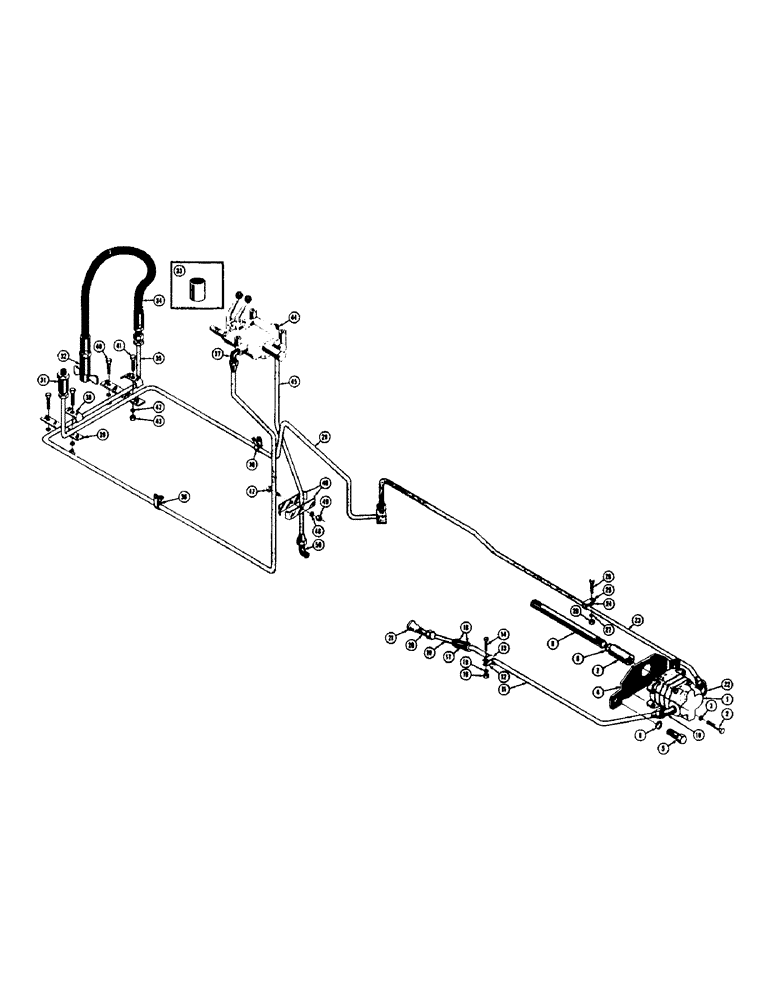

Запчасти Case 320 (28) - BASIC BACKHOE HYDRAULICS AND PUMP DRIVE (WHEEL TRACTOR) (00) - COMPLETE MACHINE

1

31614

PUMP - hydraulic, 19 G.P.M. (See Figure 60 for breakdown) Original equipment only - use D21319 or D26066

1шт.

D21319

PUMP - hydraulic, 19 G.P.M. (See Figure 62 for breakdown) Replacement only

1шт.

D26066

PUMP - hydraulic, 19 G.P.M. (Heavy duty) (See Figure 64 for breakdown) Replacement only

1шт.

2

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-20 NF x 2

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

36283

BRACKET - pump mounting

1шт.

5

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

36280

COUPLING

- hydraulic pump to drive shaft

1шт.

8

36281

X

SNAP RING - pump drive shaft coupling

1шт.

9

36278

GEAR

- drive, pump

1шт.

10

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree male, 1" JIC x 1" NPT

1шт.

11

36464

SPACER

TUBE - reservoir to pump, front section

1шт.

12

49782

CLAMP - 36464 tube

1шт.

13

36472

PLATE - mounting, 49782 clamp

1шт.

14

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

1шт.

17

36467

HOSE - connects 36464 and 36466 tubes (1" I.D. x 1-1/2" O.D. x 3" long)

1шт.

18

49766

AUGER

CLAMP - 36467 hose

2шт.

19

36466

TUBE - reservoir to pump (Rear section)

1шт.

20

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree male, 1" JIC x 1" NPT

1шт.

21

221-357

COUPLING

BUSHING - reducing, 1-1/2" NPT to 1" NPT

1шт.

22

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree male, 3/4" JIC x 3/4" NPT

1шт.

23

36461

TUBE - pump to backhoe control valve, front section

1шт.

24

49789

CLAMP

- 36461 tube

1шт.

25

36472

PLATE - mounting, 49789 clamp

1шт.

26

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

1шт.

29

37740

TUBE - pump to backhoe control valve, rear section 46" Length

1шт.

30

49841

CLAMP

- 37740 tube

1шт.

35146

DISCONNECT - quick

1шт.

31

36262

DISCONNECT - quick, male half

1шт.

32

36263

DISCONNECT - quick, female half

1шт.

33

221-330

COUPLING - pipe (3/4" NPT) (Used on machines without quick disconnects)

1шт.

34

36232

HOSE ASSY.

HOSE - valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 32" long)

1шт.

35

36468

TUBE - backhoe control valve to loader control valve (Use 37240)

1шт.

37240

TUBE - backhoe control valve to loader control valve

1шт.

36

49841

CLAMP

- 37240 tube

1шт.

37

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" JIC x 3/4" NPT

1шт.

38

32978

PLATE ASSY.

CLAMP - 37740 and 37240 tubes

2шт.

39

36473

CAP

PLATE - mounting, 32978 clamp

2шт.

40

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16-24 NF x 1 (Clamp to tractor)

2шт.

41

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 (Clamp to plate)

2шт.

42

92-5

LOCK WASHER,5/16"

4шт.

43

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

44

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" JIC x 3/4" NPT

1шт.

45

36470

TUBE - loader control, Serial Range: valve-reservoir

1шт.

46

49846

CLUTCH

CLAMP - 36470 tube

2шт.

47

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2

1шт.

48

92-5

LOCK WASHER,5/16"

1шт.

49

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

50

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" JIC x 3/4" NPT

1шт.
