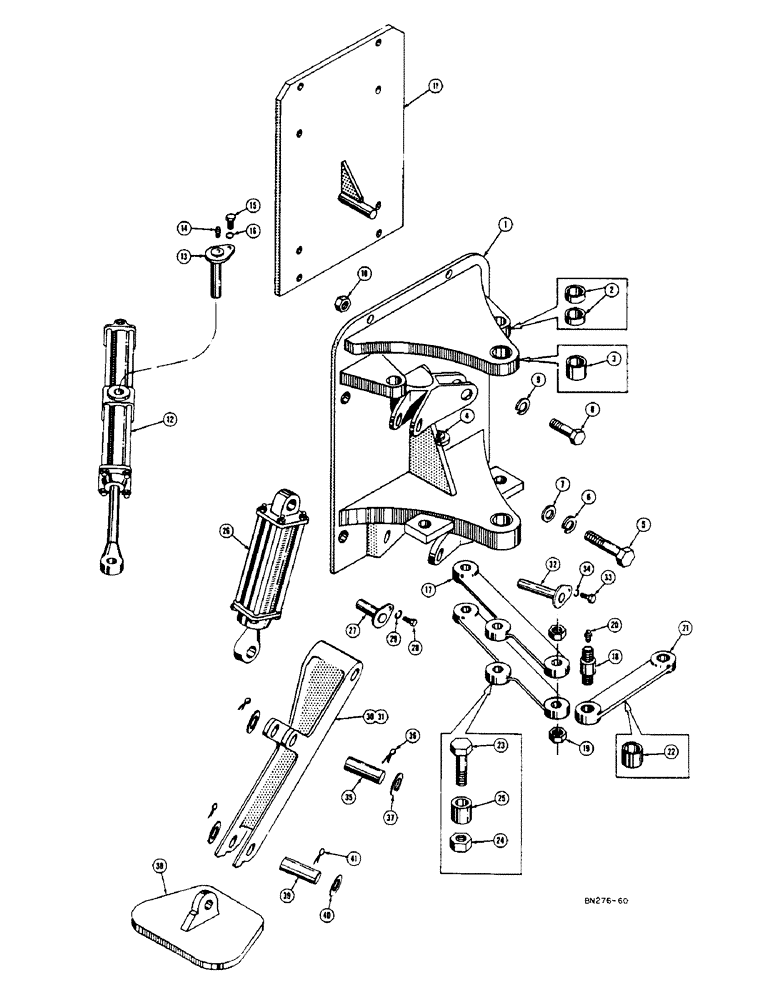

Запчасти Case 320 (36) - MOUNTING PARTS, SWING LINKAGE, AND STABILIZERS (CRAWLER TRAC.) MOUNTING PARTS (00) - COMPLETE MACHINE

1

34719

BRACKET - mounting, backhoe

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- mounting bracket, for swing links

4шт.

3

D23203

BUSHING

- mounting bracket, tower pivot

4шт.

4

35395

PIN - retaining, transport (Includes chain)

1шт.

5

14-1648

BOLT (MACHINE),Hex, 1" - 14 x 3", Gr 5

HHCS - 1-14 NF x 3

4шт.

6

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

7

195-53

WASHER,1" x 2" x .134"

- plain (1-1/16)

4шт.

8

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2-20 NF x 1-3/4

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2-20 NF)

4шт.

11

34788

HOUSING

PLATE - mounting, control valve

1шт.

12

38871

CYLINDER - swing, hydraulic (See Figure 68 for breakdown) Has 3" O.D. cylinder tube - use D23257, and links

2шт.

D23257

CYLINDER - swing, hydraulic (See Figure 68 for breakdown) Has 2-7/8" O.D. cylinder tube, and links

2шт.

13

35031

PIN

- pivot, swing cylinder, and links

4шт.

14

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" NPT - 67-1/2 degrees (Lincoln #5300), swing cyls. and links\

4шт.

15

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4, swing cyls. and links

4шт.

16

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Swing cyl. and links Int Tooth, 1/2"

4шт.

D23740

BUSHING

- lockhead pin bolt (If used), swing cyls. and links

4шт.

17

D20158

LINK - swing, front, cyls.

4шт.

18

D21332

BOLT - mounting bracket to link; link to link, swing cyls.

4шт.

19

131-370

LOCK NUT

NUT - lock, hex. (1-14 NF), swing cyls. and link

8шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight (Lincoln #5000), swing cyls. and links

4шт.

21

35030

LINK - swing, rear, cyls.

2шт.

22

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- 35030 link, swing cyls.

4шт.

23

14-1676

HHCS - 1-14 NF x 4-3/4 (Piston rod yoke; link to tower), swing cyls. Hex, 1"-14 x 4 3/4", G5

4шт.

24

131-370

LOCK NUT

NUT - lock, hex. (1-14 NF), swing cyl. and links

4шт.

25

30959

SPACER - 14-1676 cap screw, swing cyls. and links

4шт.

26

34942

CYLINDER - stabilizer, hydraulic (Has grease pressure fitting - use 38464) See Figure 66 for breakdown

2шт.

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic (No grease pressure fitting) See Figure 66 for breakdown

2шт.

27

34961

PIN - pivot, stabilizer cylinder (Upper)

2шт.

28

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4, stabilizers

2шт.

29

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Stabilizers Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin bolt (If used), stabilizers

2шт.

30

34709

ARM - stabilizer, R.H.

1шт.

31

34710

ARM - stabilizer, L.H.

1шт.

32

34629

PIN - pivot, stabilizer arm mounting

2шт.

33

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4, stabilizers

2шт.

34

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Stabilizers Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin bolt (If used), stabilizers

2шт.

35

35037

PIN - pivot, stabilizer cylinder (Lower)

2шт.

36

132-152

PIN

- cotter (1/4 x 1-3/4), stabilizers

4шт.

37

32625

WASHER - stabilizer cylinder pin (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick)

4шт.

38

35731

BUSHING

FOOT - stabilizer

2шт.

39

35037

PIN - pivot, stabilizer, Serial Range: arm-foot

2шт.

40

32625

WASHER - foot pivot pin, stabilizers

4шт.

41

132-152

PIN

- cotter (1/4 x 1-3/4), stabilizers

4шт.
