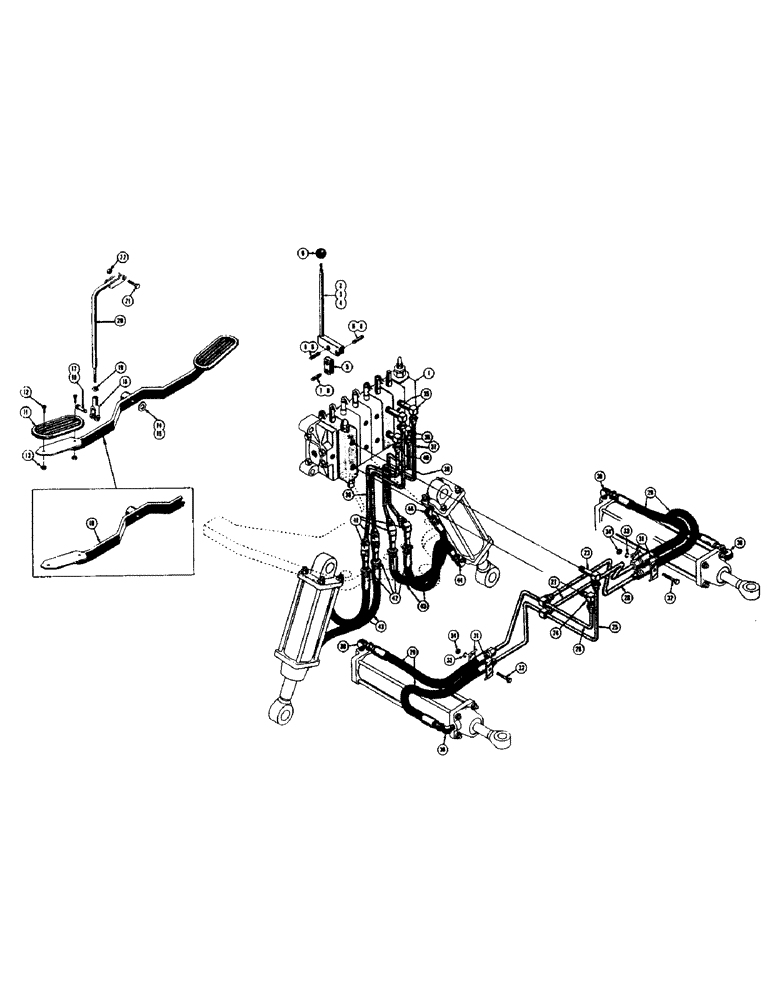

Запчасти Case 320 (52) - SWING CYLINDER AND STABILIZER CYLINDER HYDRAULICS (WHEEL TRACTOR) (00) - COMPLETE MACHINE

1

34642

X

VALVE - hydraulic control, backhoe (Use D23812)

1шт.

D23812

VALVE

- hydraulic control, backhoe (Note: D23812 and 34642 valves are identical insofar as field service is concerned) See Figure 76 for breakdown

1шт.

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4" JIC x 3/4" NPT

1шт.

2

35382

LEVER - valve, boom control (11-1/4" long)

1шт.

3

35159

LEVER - valve, dipper arm and bucket control (9-3/4" long)

2шт.

4

35160

WASHER

LEVER - valve, stabilizer control (8-1/2" long)

2шт.

5

35161

LINK - valve lever

5шт.

6

35173

PIN

- valve, Serial Range: lever-link

10шт.

7

35172

PIN - valve to lever link

5шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

30шт.

9

70213

KNOB

- control lever

5шт.

10

36137

BAR - control, swing cylinders

1шт.

11

35253

NUT

PEDAL - rubber, swing control bar

2шт.

12

74-412

FHMS - 1/4-28 NF x 3/4

4шт.

13

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

4шт.

14

195-45

WASHER,3/4"

SAE wrot (1/2) 3/4"

1шт.

15

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

16

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod, swing cylinders control (3/8-24 NF)

1шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , 213-4 yoke 3/8" x 1.060"

1шт.

18

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

1шт.

20

36135

SUPPORT

ROD - control, swing cylinders

1шт.

21

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8-24 NF x 1-3/4

1шт.

22

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, hex. (3/8-24 NF)

1шт.

23

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, extra long (1/2" JIC x 1/2" NPT) , SWING CYLINDER HYDRAULICS

1шт.

24

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 1/2" JIC x 1/2" NPT, SWING CYLINDER HYDRAULICS

1шт.

25

36193

TUBE - valve to L.H. swing cylinder, rear hose , HYDRAULICS

1шт.

26

36190

HYD TUBE

TUBE - valve to L.H. swing cylinder, front hose , HYDRAULICS

1шт.

27

36196

SEAL

TUBE - valve to R.H. swing cylinder, front hose , HYDRAULICS

1шт.

28

36194

LOCK WASHER

TUBE - valve to R.H. swing cylinder, rear hose , HYDRAULICS

1шт.

29

38349

HOSE - to swing cylinder ports (1/2" I.D. x 7/8" O.D. x 25-1/2" long) , HYDRAULICS

4шт.

30

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 1/2" JIC x 1/2" NPT, SWING CYLINDER HYDRAULICS

4шт.

31

31665

COLLAR CLAMP

CLAMP - hose, swing cylinders , HYDRAULICS

4шт.

32

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Swing cylinder hydraulics Hex, 5/16"-24 x 1 3/4", G5

2шт.

33

92-5

LOCK WASHER,5/16"

swing cylinder hydraulics 5/16"

2шт.

34

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), SWING CYLINDER HYDRAULICS

2шт.

35

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, extra long (1/2" JIC x 1/2" NPT), STABILIZER CYLINDER HYDRAULICS

2шт.

36

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 1/2" JIC x 1/2" NPT, STABILIZER CYLINDER HYDRAULICS

2шт.

37

36198

TUBE - valve to R.H. stabilizer cylinder, upper hose , HYDRAULICS

1шт.

38

36200

SCREW

TUBE - valve to L.H. stabilizer cylinder, upper hose , HYDRAULICS

1шт.

39

36206

FLEXIBLE HOSE

TUBE - valve to R.H. stabilizer cylinder, lower hose , HYDRAULICS

1шт.

40

36208

TUBE - valve to L.H. stabilizer cylinder, lower hose , HYDRAULICS

1шт.

41

50879

PROFILE

ELBOW - 90 degrees special, tubes to stabilizer cylinder hoses , HYDRAULICS

4шт.

42

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (5/8 - 18 NF), STABILIZER CYLINDER HYDRAULICS

4шт.

43

36210

HOSE

- stabilizer cylinder (1/2" I.D. x 7/8" O.D. x 21-1/2" long) , HYDRAULICS

1шт.

44

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 5/8" JIC x 1/2" NPT , STABILIZER CYLINDER HYDRAULICS

4шт.

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male, 1/2" JIC x 1/2" NPT , HYDRAULICS

4шт.
