(82[1]) - SCARIFIER (MOUNTS IN EAGLE HITCH ARMS)

Запчасти Case 320 (82[1]) - SCARIFIER (MOUNTS IN EAGLE HITCH ARMS) (00) - COMPLETE MACHINE

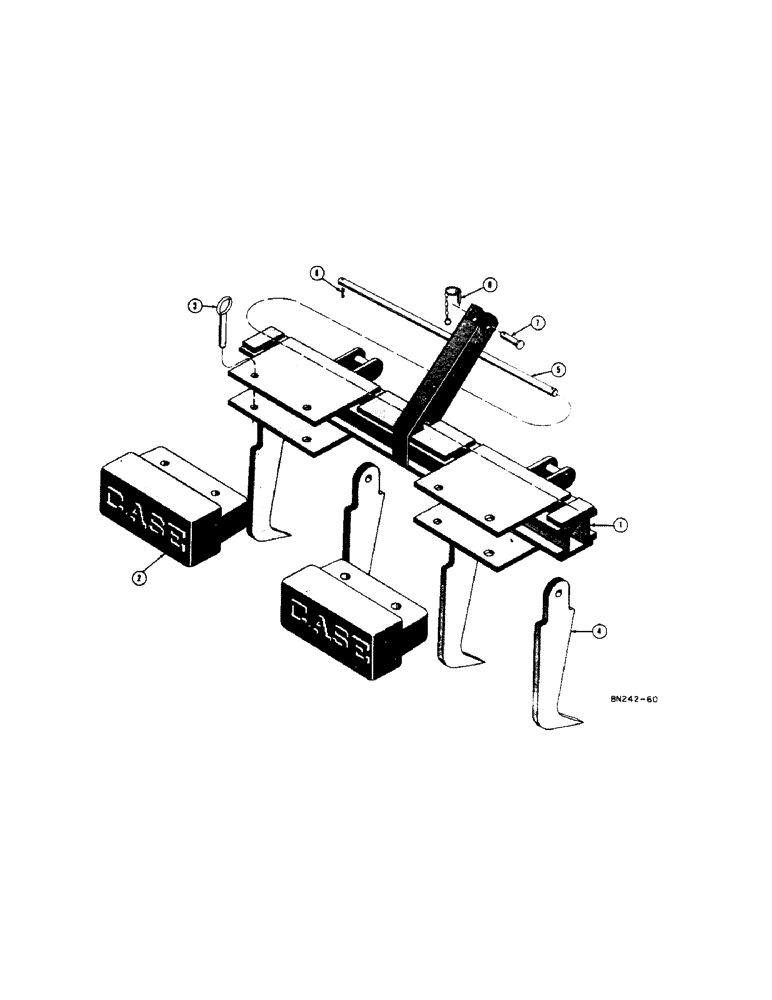

Схема запчастей Case 320 - (82[1]) - SCARIFIER (MOUNTS IN EAGLE HITCH ARMS) (00) - COMPLETE MACHINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

35944

BUSHING,57.25mm ID x 60.35mm OD x 57.05mm L

FRAME - scarifier

1шт.

2

30463

WEIGHT - scarifier

2шт.

3

CAS19055

PIN ASSY.

PIN - retaining, weight

4шт.

4

31752

LINE

TOOTH - scarifier

4шт.

5

35948

SPRING

ROD - retaining, tooth

1шт.

6

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

7

20056

PIN - pivot, scarifier mounting

1шт.

8

20055

PIN AND RING - retaining

1шт.
