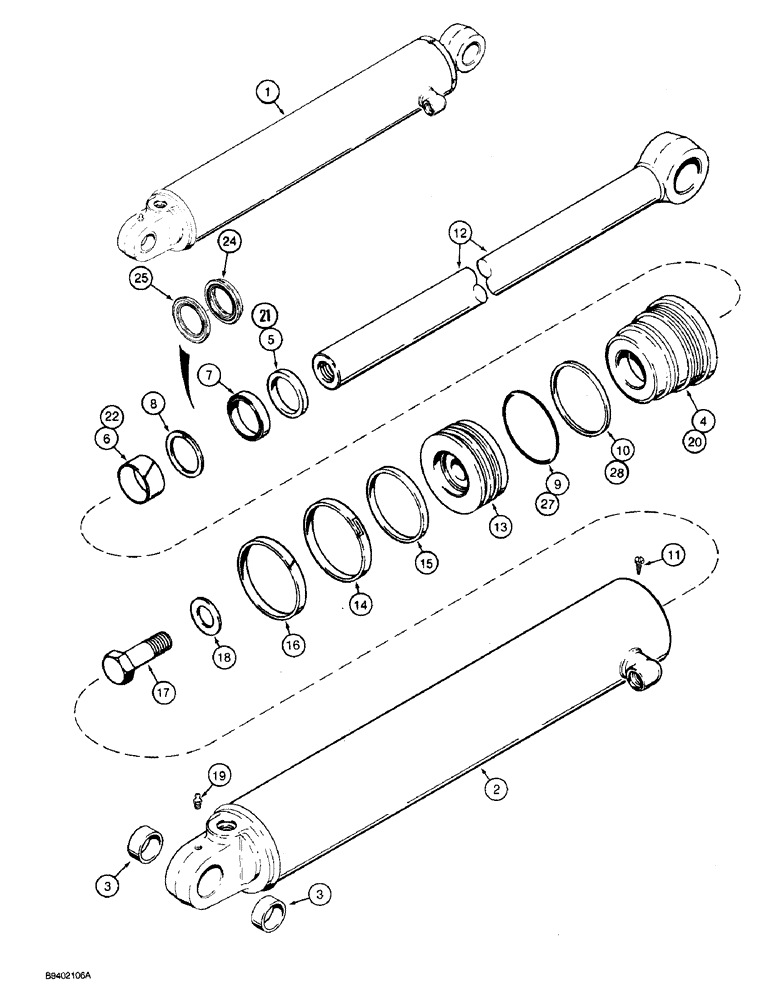

Запчасти Case 590 (8-108) - 1986810C1 BACKHOE STABILIZER CYLINDERS (08) - HYDRAULICS

1

1986810C1

CYLINDER

ASSEMBLY - 127 mm ID x 530 mm stroke, stabilizer, right-hand, no longer available, order 110885A1 cylinder on figure 8-109A, Includes: Ref. 2 - 28

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1986811C1

CYLINDER

ASSEMBLY - 127 mm ID x 530 mm stroke, stabilizer, left-hand, no longer available, order 110886A1 cylinder on figure 8-109A, Includes: Ref. 2 - 28

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1986812C1

HYD TUBE

TUBE ASSEMBLY - cylinder, right-hand, no longer available, order 110887A1 tube on figure 8-109A, Includes: Ref. 3

1шт.

2

1986813C1

HYD TUBE

TUBE ASSEMBLY - cylinder, left-hand, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- 1986810C1 or 1986811C1 tube

2шт.

G110575

GLAND

ASSEMBLY - cylinder, has smooth outer lip, no longer available, order Ref. 21, 1542918C1 gland and 1543289C2 seal kit, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit P/N G110584.

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit P/N G110584.

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

Part of seal kit P/N G110584.

1шт.

8

G109086

RING

SEAL - buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110584.

1шт.

9

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of seal kit P/N G110584.

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G110584.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

1986816C1

ROD

- piston, 57 mm diameter

1шт.

13

G110594

PISTON

- cylinder

1шт.

14

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G110584.

1шт.

Part of seal kit P/N 1543289C2.

1шт.

15

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G110584.

1шт.

Part of seal kit P/N 1543289C2.

1шт.

16

G102090

RING,127mm OD, Ext

- wear, piston

1шт.

Part of seal kit P/N G110584.

1шт.

Part of seal kit P/N 1543289C2.

1шт.

17

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, 1-1/4 inch, hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 20 and 21

1шт.

20

1542918C1

CYLINDER END CAP

GLAND - cylinder, has identification groove on outer lip

1шт.

21

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

22

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit P/N 1543289C2.

1шт.

1542877C1

SEAL KIT,57.2mm Rod

KIT - seal, NSS, not shown, Includes: Ref. 24 - 26

1шт.

24

1542929C1

SEAL,2.778mm OD

- rod, NSS, order 1543289C2 kit below

1шт.

Part of seal kit P/N 1543289C2.

1шт.

25

1542928C1

SEAL,2.275" ID

- buffer, NSS, order 1543289C2 kit below

1шт.

Part of seal kit P/N 1543289C2.

1шт.

26

1543351C1

O-RING

RING - back up, NSS, no longer included in kit, not shown

1шт.

Part of seal kit P/N 1543289C2.

1шт.

27

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of seal kit P/N 1543289C2.

1шт.

28

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N 1543289C2.

1шт.

G110584

GASKET KIT

KIT - seal, Includes: Ref. 5 - 10 and 14 - 16, no longer available, order 1543289C2 kit below

1шт.

1543289C2

SEAL KIT

KIT, SEAL, Incl Ref 14 - 16, 22 - 28, a rod seal not used in this application and an instruction sheet

1шт.
