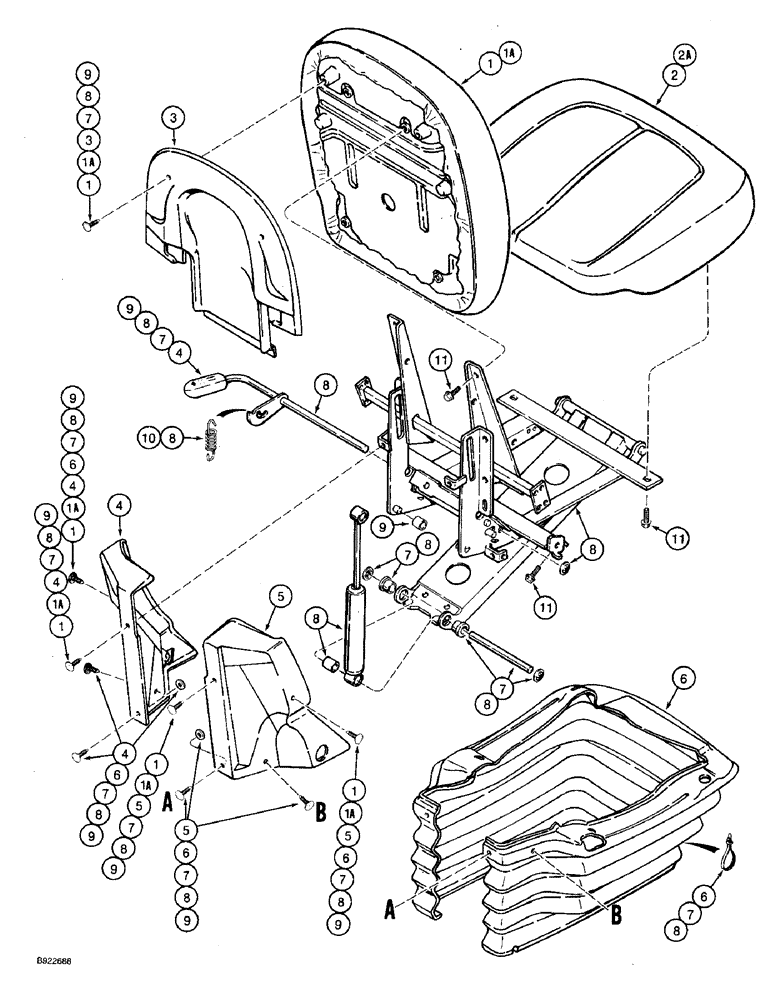

Запчасти Case 590 (9-103E) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

102795A2

SEAT

ASSEMBLY - suspension, cloth, includes seat, armrests, suspension, pedestal, and weight adjuster on figures 9-103J and 9-103L, individual component parts NSS, for service order respective component kits (replaces 102795A1), Includes: Ref. 1 - 10

1шт.

108114A2

SEAT

ASSEMBLY - suspension, vinyl, includes seat, armrests, suspension, pedestal, and weight adjuster on figures 9-103J and 9-103L, individual component parts NSS, for service order respective component kits (replaces 108114A1), Includes: Ref. 1 - 10

1шт.

1

116528A1

KIT

- backrest cushion, cloth, 102795A1 or 102795A2 seat

1шт.

1a

116531A1

KIT

- backrest cushion, vinyl, 108114A1 or 108114A2 seat

1шт.

2

116540A1

KIT

- seat cushion, cloth, 102795A1 or 102795A2 seat

1шт.

2a

116541A1

KIT

- seat cushion, vinyl, 108114A1 or 108114A2 seat

1шт.

3

116542A1

KIT

- backrest shroud

1шт.

4

116543A1

KIT

- left-hand shroud

1шт.

5

116544A1

KIT

- right-hand shroud

1шт.

6

116532A1

KIT

- boot, rubber

1шт.

7

116536A1

KIT

- swing arm pivot shaft

1шт.

8

116549A1

KIT

- suspension, includes parts from seat frame to adjuster slides, see additional kit parts on figure 9-103J, Ref. 1

1шт.

9

116539A1

KIT

- plastic components, also see additional kit parts on figure 9-103J, Ref. 2

1шт.

10

116547A1

KIT

- height adjusting spring, also includes (10) shroud plastic retainers, see additional kit parts on figure 9-103J, Ref. 6

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - 5/16 inch thread, length as needed, purchase locally, seat cushion and backrest

8шт.
