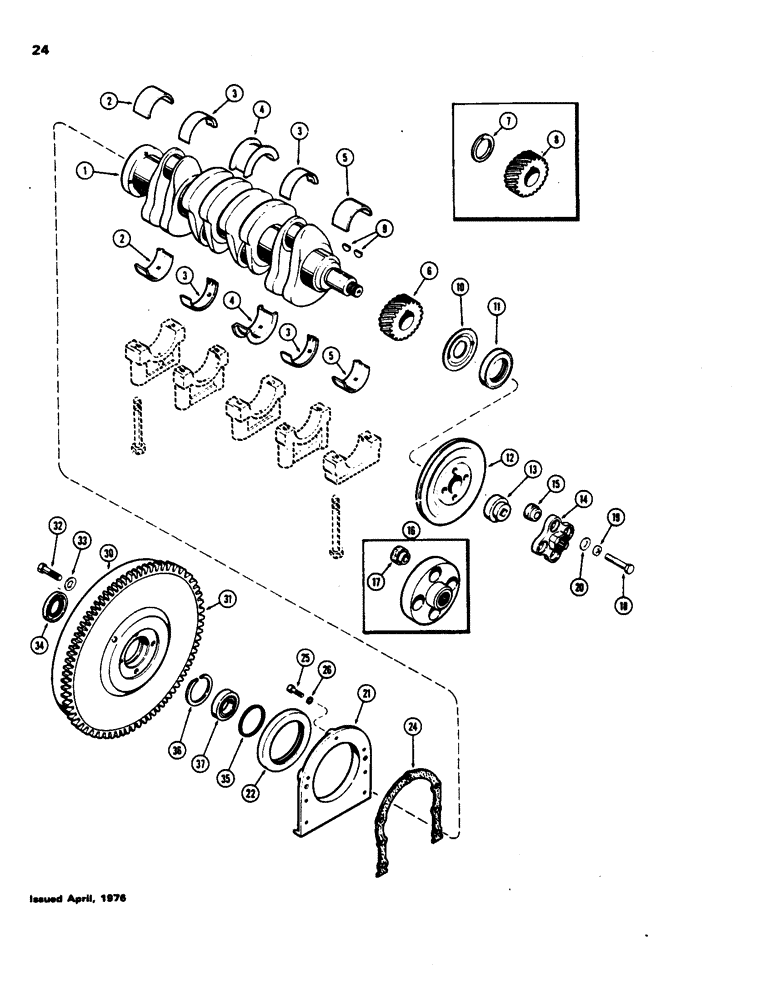

Запчасти Case 480B (024) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE

1

A39146

CRANKSHAFT

- engine

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER SET - rear bearing (Std. set of 2)

1шт.

2

A36496

LINING

LINER SET - rear bearing (.002" undersize set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER SET - rear bearing (.010" undersize set of 2)

1шт.

2

A36498

KIT

LINER SET - rear bearing (.020" undersize)

1шт.

2

A36499

BEARING LINER

LINER SET - rear bearing (.030" undersize set of 2)

1шт.

3

A36485

LINING

LINER SET - intermediate bearing (Std. set of 2)

2шт.

3

A36486

LINING

LINER SET - intermediate bearing (.002" undersize set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER SET - intermediate bearing (.010")undersize set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER SET - intermediate bearing(.020" undersize set of 2)

2шт.

3

A36489

LINING

LINER SET - intermediate bearing(.030" undersize set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER SET - center bearing (Std. set of 2)

1шт.

4

A36491

LINING

LINER SET - center bearing (.002" undersize set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - center bearing (.010" undersize set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER SET - center bearing (.020" undersize set of 2)

1шт.

4

A36494

LINING

LINER SET - center bearing (.030" undersize set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER SET - front bearing (Std. set of 2)

1шт.

5

A36481

LINING

LINER SET - front bearing (.002" undersize set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER SET - front bearing (.010" undersize set of 2)

1шт.

5

A36483

LINING

LINER SET - front bearing (.020" undersize set of 2)

1шт.

5

A36484

LINING

LINER SET - front bearing (.030" undersize set of 2)

1шт.

6

A39288

GEAR

- crankshaft (1-5/32" wide) (Replaces A29263 & A29294)

1шт.

7

A29294

BUSHING

SPACER - gear (3/32" wide) (use only w/A29263 gear)

1шт.

8

A29263

GEAR

- crankshaft (1-1/16" wide) (Order A39288)

1шт.

9

A39132

KEY

- pulley & gear (1/4 x 1-1/16" Non-Roc K15N)

2шт.

10

A29259

SLINGER

- oil

1шт.

11

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front (Replaces A36609) (2 x 3 1/2")

1шт.

12

A50962

PULLEY

- fan & alternator drive belt(Replaces A39931)

1шт.

13

A35673

NUT

- pulley

1шт.

14

A51885

COUPLING, BREAK AWAY

COUPLING ASSY. - flexible, pump drive drive (Replaces A35558), Includes: Ref. 15

1шт.

15

A45216

BUSHING

- flex

4шт.

16

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - front auxiliary drive (Order A51885), Includes: Ref. 17

1шт.

17

G36905

BLOCK

BUSHING - flex

4шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

19

92-7

LOCK WASHER,7/16"

4шт.

20

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- plain (29/64 x 3/4" x #16 ga.)

4шт.

21

A38390

RETAINER

- rear oil seal

1шт.

22

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, crankshaft rear (4 x 5 x 1/2")(Replaces A39111)

1шт.

24

A39188

GASKET

- retainer, rear oil seal

1шт.

25

113-25

X

BOLT - 1/4 x 3/4" N.C. hex

4шт.

25

113-26

BOLT

- 1/4 x 1" N.C. hex

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

30

A144358

FLYWHEEL

ASSY. - engine (Replaces A37214), Includes: Ref. 31

1шт.

31

G11710

GEAR

- ring (135 T)

1шт.

32

A37216

BOLT

- flywheel (7/16 x 2" N.F. hex)

4шт.

33

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- plain (29/64 x 3/4 x 1/16")

4шт.

34

A138295

OIL SEAL

- oil, flywheel (1-3/16 x 2-5/32 x 1/4") (Replaces A37647)

1шт.

35

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

RING - seal (2-3/4 x 2-7/8 x 1/8" sq.)

1шт.

36

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , brg to flywheel 2.125", Int, #212

1шт.

37

T17389

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

BEARING - pilot, flywheel

1шт.
