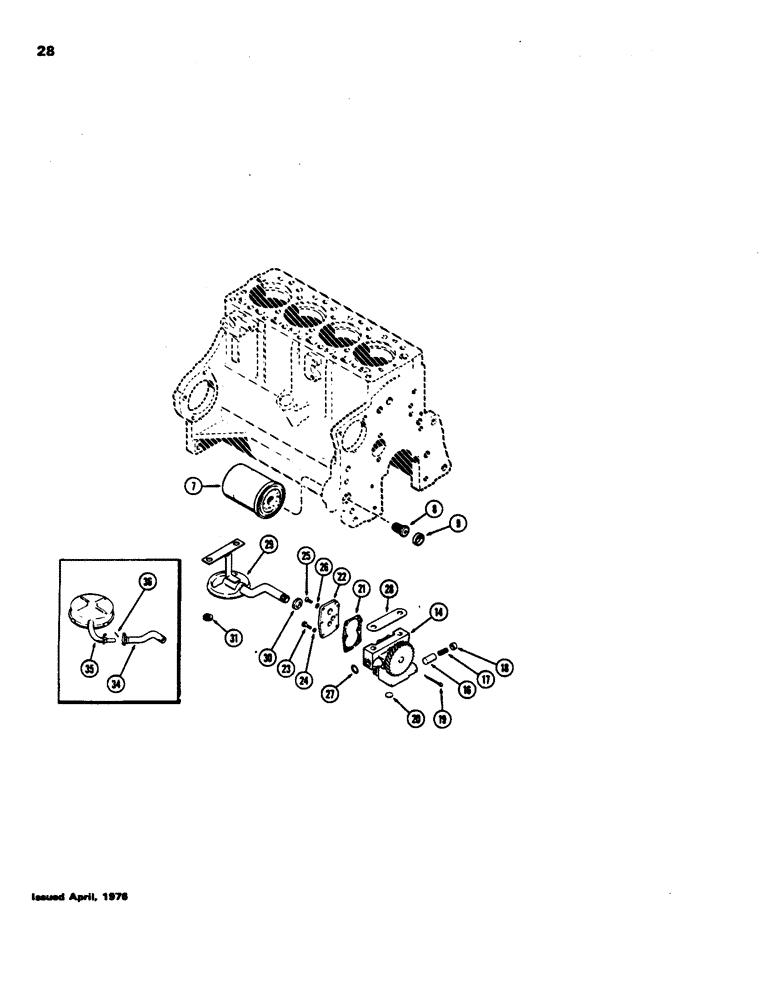

Запчасти Case 480B (028) - OIL FILTER, (188) DIESEL ENGINE

7

A37189

FILTER, ELEMENT

ELEMENT, FILTER ELEMENT - filter, engine oil

1шт.

8

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

9

41-1016

PLUG,Cup, 1"

PLUG - adapter opening (1" cup type)

1шт.

14

A38372

PUMP

PUMP ASSY. - oil, Includes: Ref. 16 - 26

1шт.

14

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

14

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

16

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

17

G48500

SPRING

SPRING - relief valve, oil pump

1шт.

18

A29260

RETAINER

RETAINER - relief valve, oil pump

1шт.

19

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Oil pump 1/8" x 1 1/8", Slotted

1шт.

20

A39321

PLUG,Cup, 7/16"

PLUG - pump body (1/2" cup type) (Replaces A30020), oil pump

2шт.

21

G46852

GASKET

GASKET - pump cover, oil pump

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - pump body, oil pump

1шт.

23

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

25

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - mach., 1/4 x 5/8" flat hd, oil pump

2шт.

26

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

27

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4 x 15/16 x 5/32")

1шт.

28

G11337

SHIM,.002" Thk

SHIM, , Pump to bearing cap, Oil pump .002" Thk

1шт.

28

G11338

SHIM,.005" Thk

SHIM, , Pump to bearing cap, Oil pump .005" Thk

1шт.

29

A39896

FILTER SCREEN

SCREEN - oil pump (1st used eng. ser. no. 2719436) (Order ref. 34, 35 & 36)

1шт.

30

223-207

LOCK NUT

NUT - lock, suction pipe (3/8" tube), oil pump

1шт.

31

G49404

WASHER

WASHER - screen bracket (17/32 x 27/32 x 1/16"), oil pump

2шт.

34

A39035

TUBE

PIPE - suction, oil, Serial Range: pump-pan

1шт.

35

A39036

FLOAT

FLOAT ASSY. - oil pan (Incl. screen), pump

1шт.

36

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.
