(031A) - ENGINE GASKET KITS, (188) DIESEL ENGINE, CYLINDER BLOCK KIT, FIRST USED ENGINE SERIAL NUMBER 2728315

Запчасти Case 480B (031A) - ENGINE GASKET KITS, (188) DIESEL ENGINE, CYLINDER BLOCK KIT, FIRST USED ENGINE SERIAL NUMBER 2728315

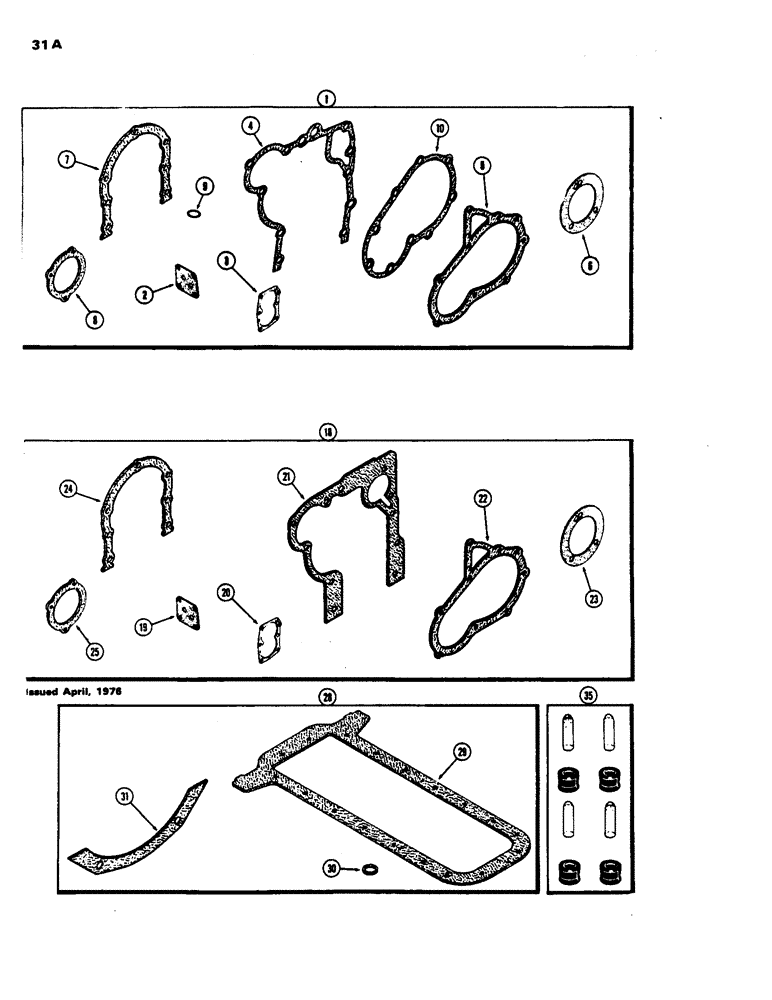

Схема запчастей Case 480B - (031A) - ENGINE GASKET KITS, (188) DIESEL ENGINE, CYLINDER BLOCK KIT, FIRST USED ENGINE SERIAL NUMBER 2728315
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A43198

GASKET

KIT - cylinder block (See Note) (Replaces A43101), Includes: Ref. 2 - 10

1шт.

For complete engine overhaul order A43198 & A43064. Also A43193 from figure 31

1шт.

2

G46854

GASKET

- oil filter bracket (not used)

1шт.

3

G46852

GASKET

- oil pump cover

1шт.

4

A51529

GASKET

- timing gear cover, lower

1шт.

5

G46859

GASKET

- pump drive cover (Not Applicable)

1шт.

6

A38083

GASKET

- water pump

1шт.

7

A39188

GASKET

- rear oil seal retainer

1шт.

8

A30042

GASKET

- power steering pump

1шт.

9

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body (3/4 x 1x 1 1/8")

1шт.

10

A39925

GASKET

- fuel pump cover

1шт.

18

A41426

KIT

GASKET KIT - cylinder block (See Note) (Order A43198), used prior eng s/n 2728315, Includes: Ref. 19 - 25

1шт.

For complete engine overhaul order A43198 & A43064. Also A43193 from figure 31

1шт.

19

G46854

GASKET

- oil filter bracket (Not used this engine), cyl block kit used prior eng s/n 2728315

1шт.

20

G46852

GASKET

- oil pump cover, cyl block kit used prior eng s/n 2728315

1шт.

21

A38228

GASKET

- timing gear cover (Order A51529), cyl block kit used prior eng s/n 2728315

1шт.

22

G46859

GASKET

- pump drive cover, cyl block kit used prior eng s/n 2728315

1шт.

23

A38083

GASKET

- water pump, cyl block kit used prior eng s/n 2728315

1шт.

24

A39188

GASKET

- rear oil seal retainer, cyl block kit used prior eng s/n 2728315

1шт.

25

A30042

GASKET

- power steering pump (Not used), cyl block kit used prior eng s/n 2728315

1шт.

28

A43064

GASKET

- oil pan (See Note), oil pan kit, Includes: Ref. 29 - 31

1шт.

For complete engine overhaul order A43198 & A43064. Also A43193 from figure 31

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - pan to block,oil pan kit

1шт.

30

A58608

GASKET

- drain plug (3/4 x 1 x 1/16" nylon), oil pan kit

1шт.

31

G46913

GASKET

- to torque tube, oil pan kit

1шт.

35

M20611

SEAL KIT

seal, valve stem (Set of 4 seals & Installation sleeve), oil pan kit

1шт.
