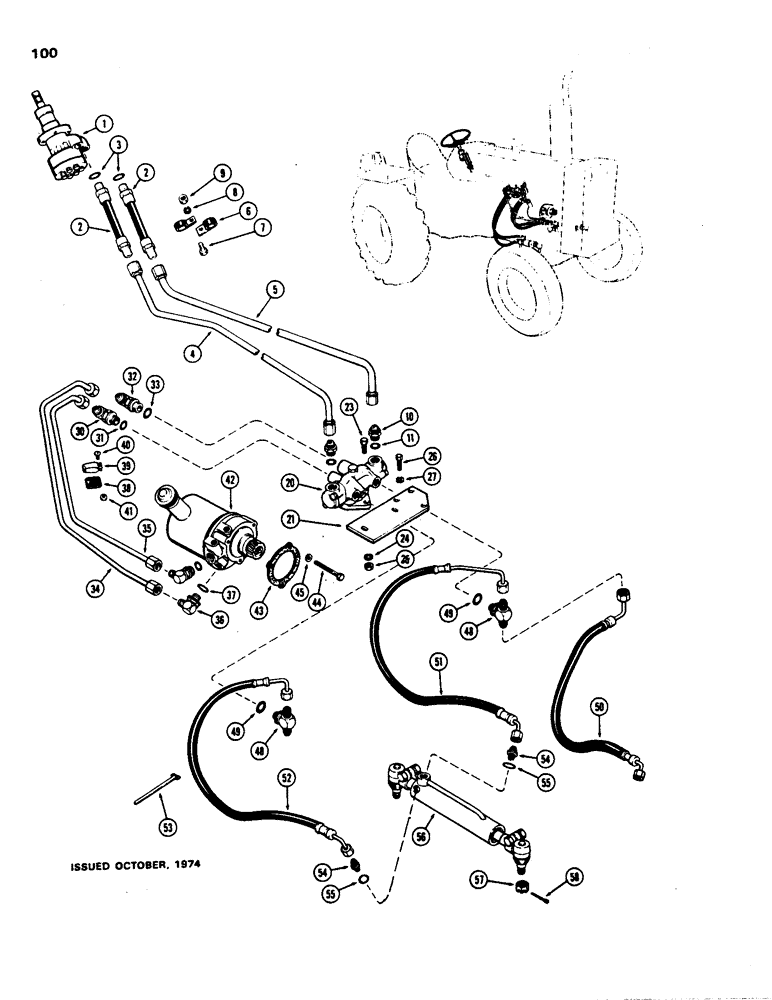

Запчасти Case 480B (100) - HYDROSTATIC STEERING SYSTEM, HYDROSTATIC STEERING

1

REF

INSTRUCTION

PUMP ASSY. - manual (Repairs Figure 102)

1шт.

2

A39104

HOSE ASSY.

- pump to tube (7-7/32" long), Includes: Ref. 3

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.

4

A39106

TUBE

- R.H. side, Serial Range: pump-valve

1шт.

5

A39107

TUBE

- L.H. side, Serial Range: pump-valve

1шт.

6

49838

CLAMP

- tube

2шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Clamp Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - tube to valve, 1/2" O.D. x 3/4" N.F., Incl. Ref 11

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.

20

A37980

VALVE

ASSY. - control (Repairs Figure 102)

1шт.

21

A35581

SPLIT PIN/SAFETY PIN

PLATE - valve mounting

1шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- valve to plate, 3/8 x 1-1/4" N.C. hex.

3шт.

24

92-6

LOCK WASHER,3/8"

3шт.

25

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

30

A51764

ELBOW

ASSY. - pressure tube to valve, Includes: Ref. 31

1шт.

31

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

32

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Return tube to valve, Includes: Ref. 33 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.

34

A35731

TUBE - return, valve to pump (w/gas engine)

1шт.

34

A35733

TUBE

- return, valve to pump (w/diesel engine)

1шт.

35

A35730

TUBE ASSY.

TUBE - pressure, pump to valve (w/gas engine)

1шт.

35

A35732

TUBE

- pressure, pump to valve (w/diesel engine)

1шт.

36

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Tube to pump, Includes: Ref. 37 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 13/16 x 5/64")

1шт.

38

G46835

GROMMET

- rubber, tube clamp

1шт.

39

G46194

CLAMP

- tube, Serial Range: pump-valve

1шт.

40

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- #10-32 x 3/4" Phillips hd.

1шт.

41

193-100

LOCK WASHER,Int Tooth, 1 1/4"

NUT - #10-32 hex. (Keps)

1шт.

42

REF

INSTRUCTION

PUMP ASSY. - hydraulic power (Repairs Figure 104)

1шт.

43

A30042

GASKET

- pump

1шт.

44

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- pump to cover, 3/8 x 3-1/4" N.C. hex.

3шт.

45

92-6

LOCK WASHER,3/8"

3шт.

48

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - cylinder hoses to valve, 3/8" O.D. x 9/16" N.F., Includes: Ref. 49

2шт.

49

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

50

A35615

HOSE

- valve to L.H. cylinder (32-1/2")

2шт.

51

A35614

HOSE

- valve to R.H. cyl. inner port (39-5/8")

1шт.

52

A35616

HOSE

- valve to R.H. cyl. outer port (36-1/4")

1шт.

53

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, cylinder hose

2шт.

54

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSY, hose to cylinder 3/8" O.D. x 9/16" N.F., Incl. Ref. 55

4шт.

55

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

56

REF

INSTRUCTION

CYLINDER - hydraulic (See Figures 107A & 107C)

2шт.

57

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - slotted, 5/8" N.F. hex.

4шт.

58

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.
