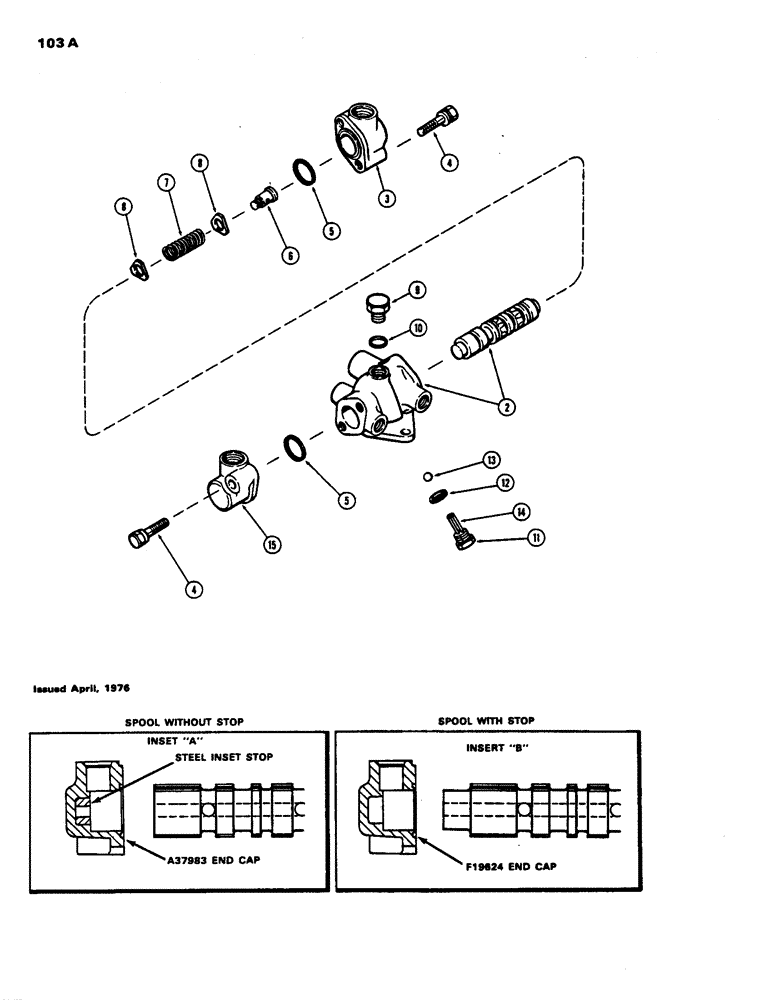

Запчасти Case 480B (103A) - CONTROL VALVE

A37980

VALVE

ASSY. - control, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

BODY & SPOOL - (Order A37980)

1шт.

3

F19624

CAP

- end (See Ref. 15)

1шт.

4

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap (3/8" x 2" N.C. hex.)

4шт.

5

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap

2шт.

6

F19623

SCREW,3/8" - 24 x 15/16"

- centering

1шт.

7

F19622

VALVE SPRING

SPRING - centering

1шт.

8

F19619

WASHER

- spring

2шт.

9

F83122

PLUG

ASSY. - top, valve body Includes: Ref. 10

1шт.

10

F19628

O-RING

"O" RING - plug

1шт.

11

F82943

VALVE

PLUG ASSY. - relief valve Includes: Ref. 12 - 14

1шт.

12

F19630

O-RING

"O" RING - relief plug

1шт.

13

211-7

BALL,1/4" Dia

steel 1/4" Dia

1шт.

14

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

15

F19624

CAP

- end (w/o stop insert)(See Note)

1шт.

A37983 Cap with insert must be used when valve spool does not have stop. See inset "A". F19624 end cap must be used when valve spool has stop on end. See inset "B"

1шт.

15

A37983

CAP

- end (w/stop insert)(See Note)

1шт.

A37983 Cap with insert must be used when valve spool does not have stop. See inset "A". F19624 end cap must be used when valve spool has stop on end. See inset "B"

1шт.
