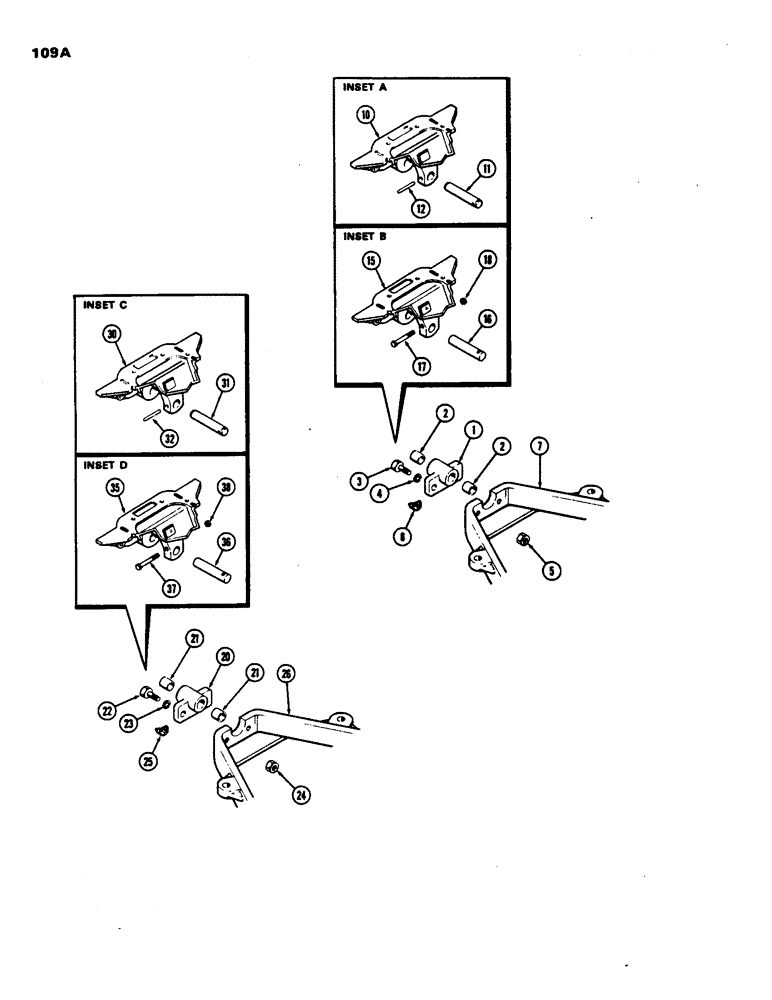

Запчасти Case 480B (109A) - FRONT AXLE REAR PIVOT, WITH (188) DIESEL ENGINE

1

A38199

PIVOT

ASSY. - rear, radius rod, Includes: Ref. 2

1шт.

2

A29944

BUSHING

- pivot

2шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 45 deg.

1шт.

7

A36283

ROD

RADIUS ROD - front axle (See Figure 108)

1шт.

10

A38425

PAN

- oil (used with A51356 pivot pin and 135-361 groove pin) (See Inset A) (Order A51539 oil pan, A51537 pivot pin, 25-544 bolt and 131-151 nut) (Order oil pan from Figure 29A)

1шт.

11

A51356

PIN

- rear pivot

1шт.

12

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - groove, 1/4 x 2" type 3

1шт.

15

A51539

PAN

- oil (used with A51537 pivot pin, 26-544 bolt and 131-351 nut) (See Inset B) (Order oil pan from Figure 29A)

1шт.

16

A51537

PIN

- rear pivot

1шт.

17

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- 5/16 x 2-3/4" N.C. hex.

1шт.

18

131-351

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16" N.C.

1шт.

20

A38199

PIVOT

ASSY. - rear, radius rod, with 148B spark ignition eng, Includes: Ref. 21

1шт.

21

A29944

BUSHING

- pivot, with 148B spark ignition eng

2шт.

22

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

with 148B spark ignition eng Hex, 5/8"-11 x 2 1/4", G5

2шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , with 148B spark ignition eng 5/8"

2шт.

24

25-1010

NUT,5/8"-11, G5

w/ 148B spark ignition eng 5/8"-11, G5

2шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 45deg., with 148B spark ignition eng

1шт.

26

A36283

ROD

RADIUS ROD - front axle (See Figure 108), with 148B spark ignition eng

1шт.

30

A38426

PAN

- oil (used with A51356 pivot pin and 135-361 groove pin) (See Inset C) (Order A51538 oil pan, A51537 pivot pin, 25-244 bolt and 121-351 nut) (Order oil pan from Figure 61A), with 148B spark ignition eng

1шт.

31

A51356

PIN

- rear pivot, with 148B spark ignition eng

1шт.

32

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - groove, 1/4 x 2" type 3, with 148B spark ignition eng

1шт.

35

A51538

PAN

- oil (used with A51537 pivot pin, 26-544 bolt and 131-351 nut) (See Inset D) (Order oil pan from Figure 61A), with 148B spark ignition eng

1шт.

36

A51537

PIN

- rear pivot, with 148B spark ignition eng

1шт.

37

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- 5/16 x 2-3/4" N.C. hex., with 148B spark ignition eng

1шт.

38

131-351

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16" N.C., with 148B spark ignition eng

1шт.
