(06-36) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL LOCK

Запчасти Case 580M (06-36) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL LOCK (06) - POWER TRAIN

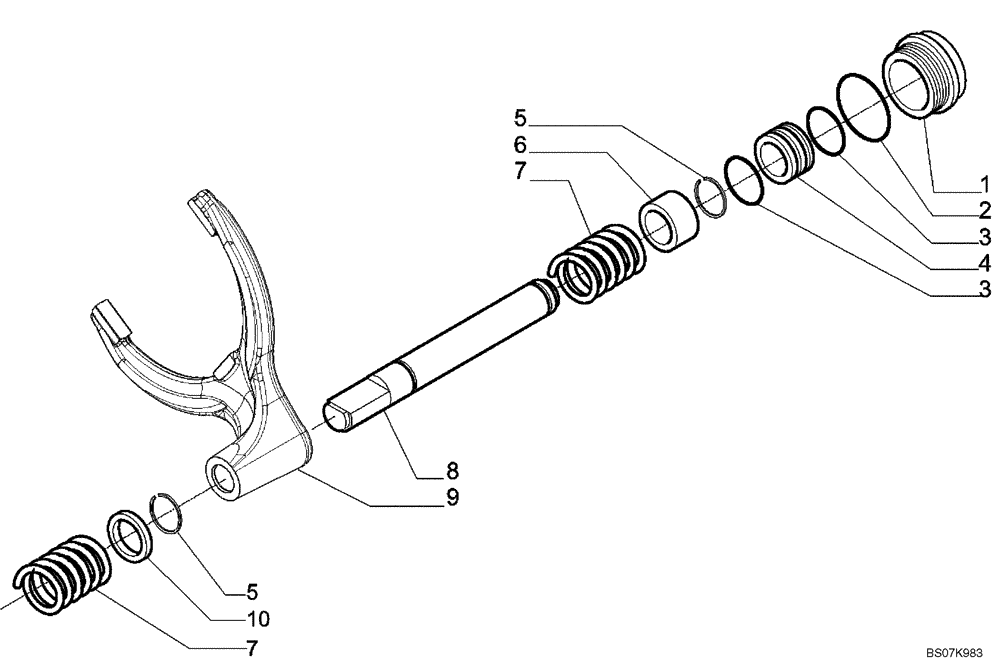

Схема запчастей Case 580M - (06-36) - 87395372 AXLE, REAR DRIVE - DIFFERENTIAL LOCK (06) - POWER TRAIN
1
7
10
2
3
5
6
3
5
7
8
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395372

REAR AXLE

Incl. Ref 1 - 10; Also Includes Parts On Figures 06-33 - 06-37, 07-02

1шт.

87395372R

REMAN-REAR AXLE

580M - SERIES 3 LOADER BACKHOE TIER 3 (NA) (2/08-)

1шт.

87395372C

CORE-REAR AXLE

Return Number

1шт.

1

87708413

CYLINDER

Differential Lock

1шт.

2

87708415

O-RING

1шт.

3

292210A1

SEAL

2шт.

4

292212A1

PISTON

1шт.

5

87708417

CIRCLIP

2шт.

6

87708420

BUSHING

1шт.

7

175966A1

SPRING

2шт.

8

87708422

PISTON

Control Piston, Differential Locking

1шт.

9

87708424

FORK

1шт.

10

87708427

SPACER

1шт.
