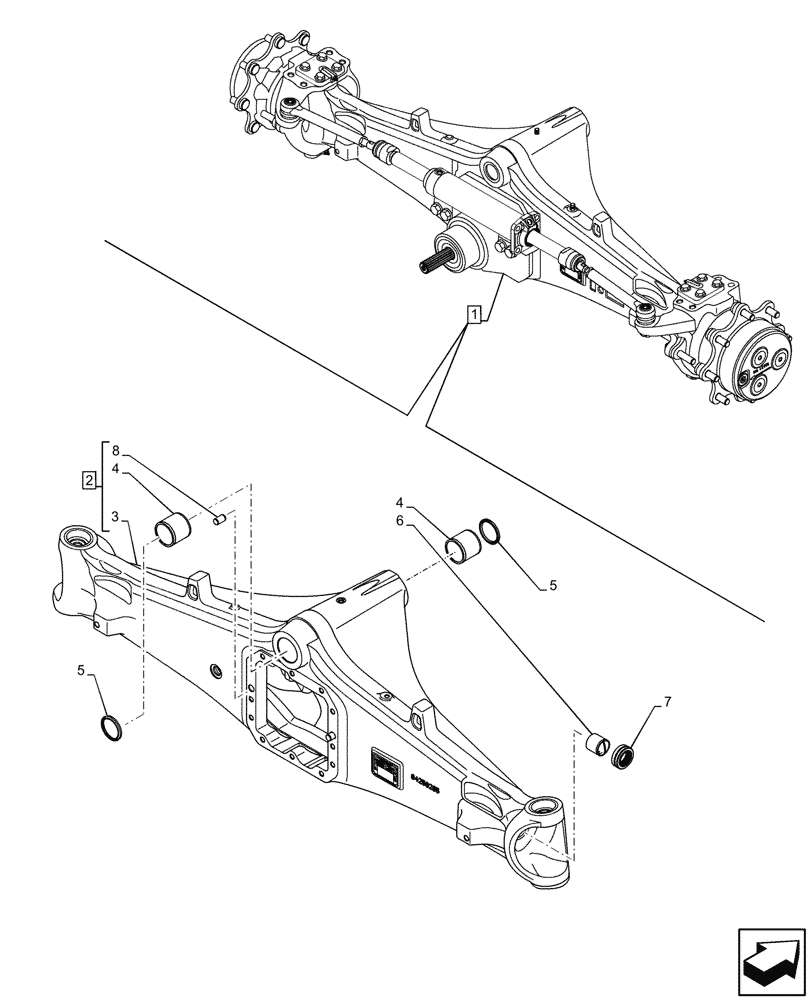

Запчасти Case 580N (25.100.080) - FRONT AXLE, HOUSING, 4WD (25) - FRONT AXLE SYSTEM

1

84497927

FRONT AXLE

ASSY, Grey, STD ACP, 12.1-1, Incl 2 - 8

1шт.

See also Front Axle Components in Figures 25.100.090, 25.102.050, 25.102.060, 25.108.090, 25.108.100, 25.108.110, 25.310.030, 41.106.060, 41.216.060

1шт.

2

84554781

HOUSING

ASSY, Incl 3, 4, 6, 8

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

4

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

2шт.

5

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

Pin Rod End

2шт.

6

84522998

BRONZE BUSHING,30mm ID x 34mm OD x 30mm L

Steel Back, 30 x 34 x 30mm

2шт.

7

47601946

OIL SEAL,30mm ID x 44mm OD x 17mm Thk

2шт.

8

4985062

DOWEL,15mm OD x 25mm L

Pin Clutch Housing Axle

2шт.
