(35.300.120) - VAR - 423000, 423001, 442082, 747854 - OIL COOLER

Запчасти Case 580N (35.300.120) - VAR - 423000, 423001, 442082, 747854 - OIL COOLER (35) - HYDRAULIC SYSTEMS

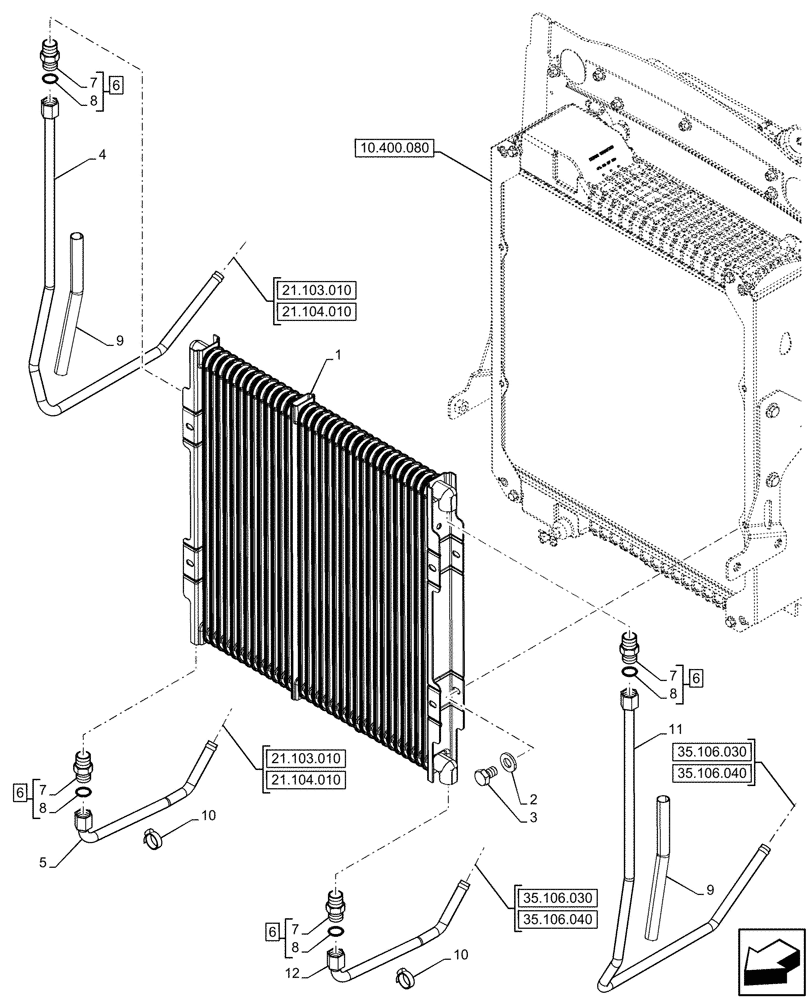

Схема запчастей Case 580N - (35.300.120) - VAR - 423000, 423001, 442082, 747854 - OIL COOLER (35) - HYDRAULIC SYSTEMS
21.103.010
7
8
8
8
1
5
9
11
10
8
7
6
3
4
6
2
10
9
7
12
7
6
6
21.104.010
21.104.010
35.106.040
35.106.040
10.400.080
35.106.030
35.106.030
21.103.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87441876

OIL COOLER

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

4

47428709

TUBE

RH, Upper Cooler

1шт.

5

47428710

TUBE

RH, Lower Cooler

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ASSY, Incl 7, 8

4шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

9

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

2шт.

10

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

11

47428712

TUBE

LH, Upper Cooler

1шт.

12

47428711

TUBE

LH, Lower Cooler

1шт.
