(35.355.090) - 7-SPOOL, BACKHOE CONTROL VALVE, MECHANICAL CONTROLS, EXTANDABLE DIPPER, HAND SWING, BRAZIL, W/ 2 LEVER CONTROLS, MOUNTING PARTS

Запчасти Case 580N (35.355.090) - 7-SPOOL, BACKHOE CONTROL VALVE, MECHANICAL CONTROLS, EXTANDABLE DIPPER, HAND SWING, BRAZIL, W/ 2 LEVER CONTROLS, MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

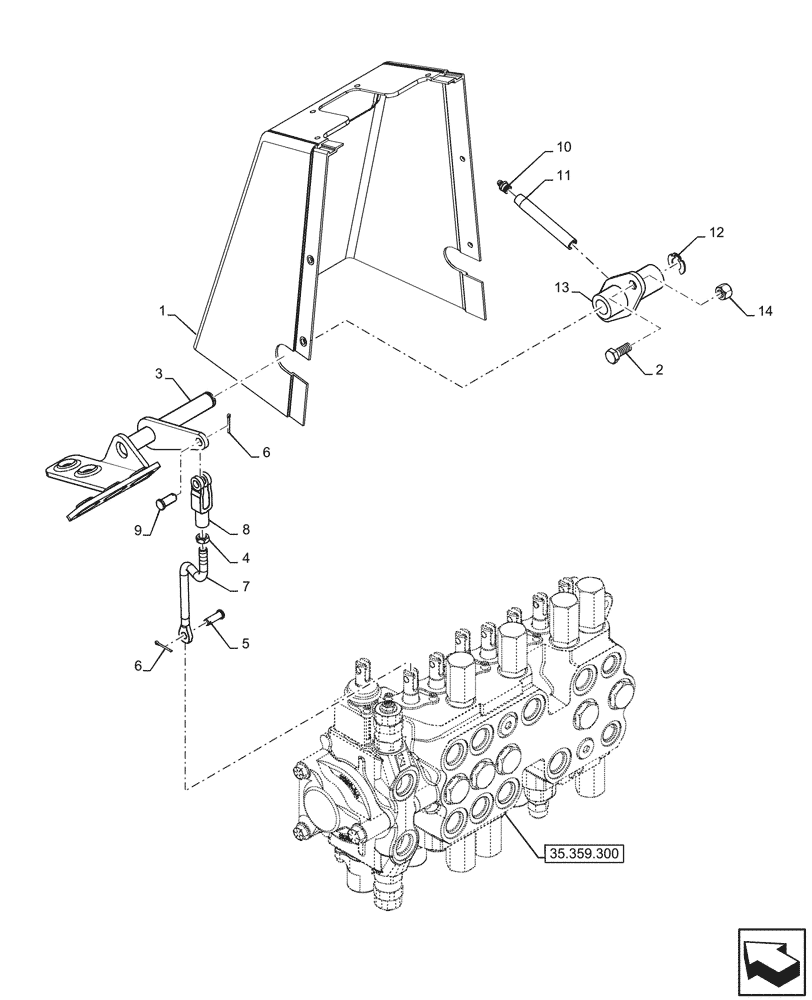

Схема запчастей Case 580N - (35.355.090) - 7-SPOOL, BACKHOE CONTROL VALVE, MECHANICAL CONTROLS, EXTANDABLE DIPPER, HAND SWING, BRAZIL, W/ 2 LEVER CONTROLS, MOUNTING PARTS (35) - HYDRAULIC SYSTEMS
35.359.300
2
9
6
11
7
1
8
3
4
12
14
5
6
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47946531

COVER

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

179029A1

PEDAL

Foot Swing

1шт.

4

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

5

D149287

PIN,7.9mm OD x 26.72mm L

7шт.

6

432-612

COTTER PIN,3/32" x 3/4"

8шт.

7

87440058

THREADED ROD,9.53mm D x 148mm L

1шт.

8

D134900

CLEVIS,3/8-24"

1шт.

9

427-6088

CLEVIS PIN,3/8" x 3/4"

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

11

D150032

TUBE

1шт.

12

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

13

126918A1

SUPPORT

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
