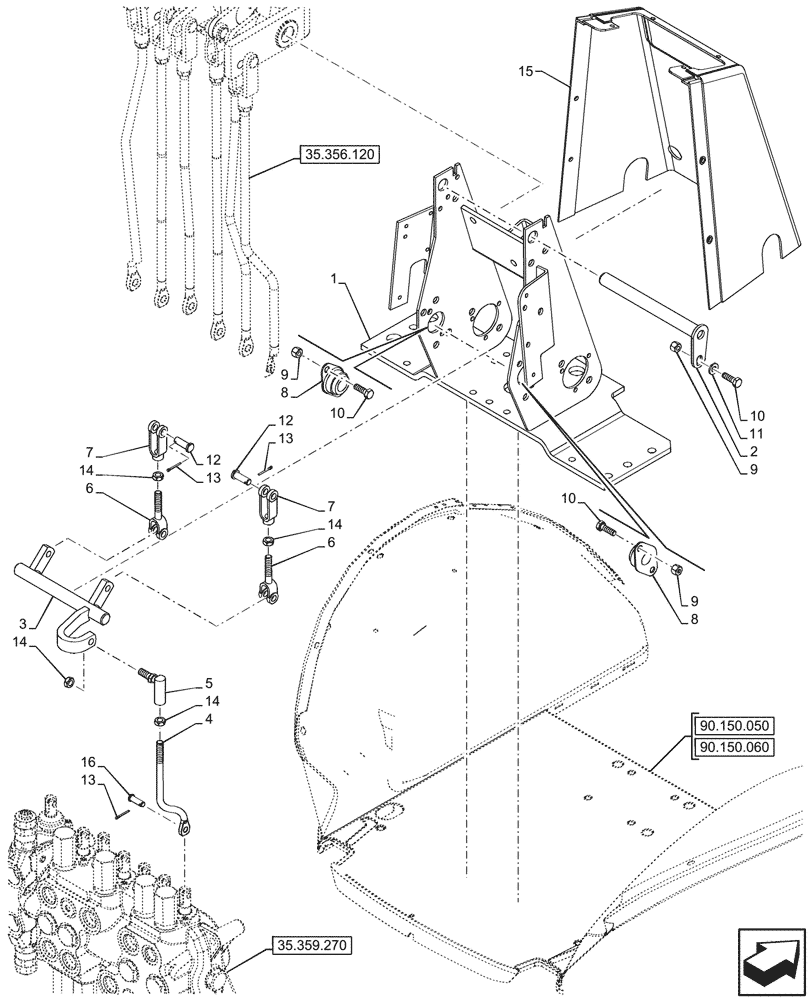

Запчасти Case 580N (35.356.110) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROL, EXTANDABLE DIPPER, FOOT SWING, BRAZIL, W/ 2 LEVER CONTROLS, MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

1

87418516

SUPPORT

Backhoe Control Tower

1шт.

2

87401203

SHAFT,198mm L

Pivot Backhoe Controls

1шт.

3

D148994

SHAFT,182.10mm L

Swing

1шт.

4

87422239

THREADED ROD,9.53mm D x 151mm L

1шт.

5

D149295

BALL JOINT,3/8"

1шт.

6

D150503

END

2шт.

7

D149262

CLEVIS,3/8-24"

2шт.

8

D139039

BEARING ASSY,19mm ID

2шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

12

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

13

432-612

COTTER PIN,3/32" x 3/4"

3шт.

14

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

15

47945922

COVER

1шт.

16

D149287

PIN,7.9mm OD x 26.72mm L

1шт.
