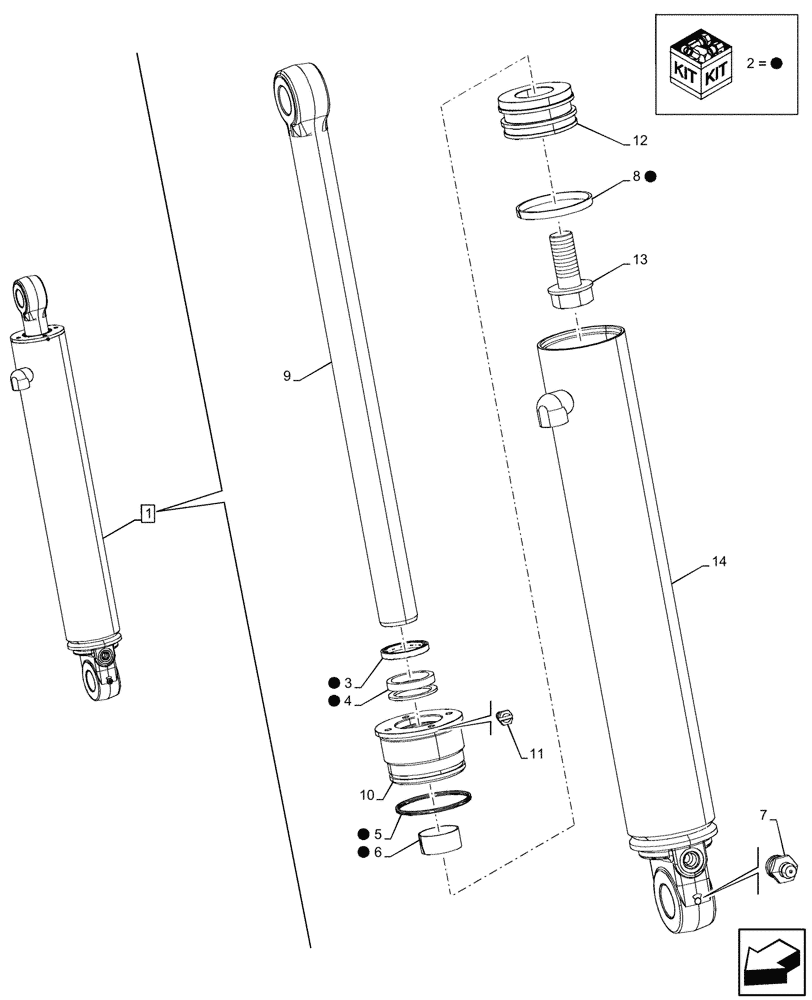

Запчасти Case 580N (35.703.030) - STABILIZER CYLINDER, RH, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84421604

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 108mm Bore, 542.9mm Stroke

ASSY, Grey, Stabilizer RH, Incl 2 - 14

1шт.

2

84259226

SEAL KIT,57.2mm Rod x 108.0mm Bore

ASSY, Stabilizer Cylinder, Incl 3 - 6, 8

1шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

4

1542877C1

SEAL KIT,57.2mm Rod

Stabilizer Cylinder, Rod & Buffer

1шт.

5

87615483

SEAL,100.05mm ID x 108.33mm OD x 4.85mm Thk

Static Head

1шт.

6

1346476C1

RING,57.15mm ID, Int

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

G110530

RING,108mm OD, Ext

1шт.

9

84222154

ROD,57.2mm OD x 771.4mm L

Chrome

1шт.

10

84238804

GLAND

1шт.

11

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

84241703

PISTON ROD/GLAND,107.29mm Bore, 57.25mm Rod, 50.65mm W

1шт.

13

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1шт.

14

84241705

BARREL,107.8mm Bore Dia

1шт.
