(35.739.120) - VAR - 747669 - BOOM SWING, PILOT CONTROLS, DAMPING VALVE

Запчасти Case 580N (35.739.120) - VAR - 747669 - BOOM SWING, PILOT CONTROLS, DAMPING VALVE (35) - HYDRAULIC SYSTEMS

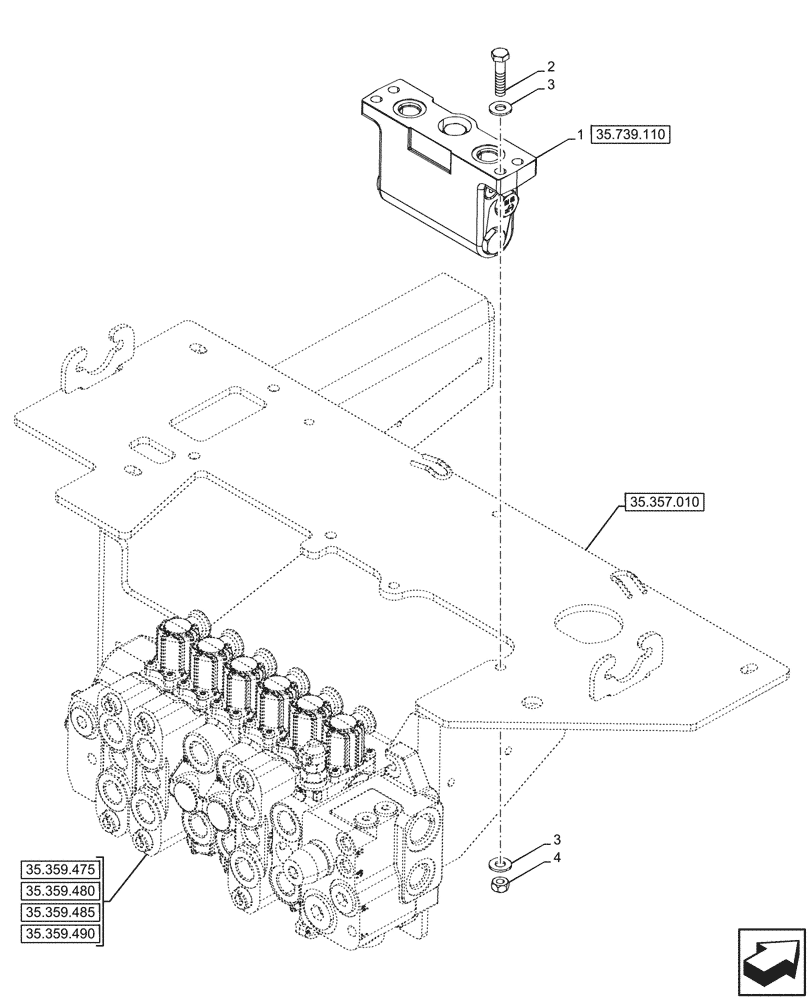

Схема запчастей Case 580N - (35.739.120) - VAR - 747669 - BOOM SWING, PILOT CONTROLS, DAMPING VALVE (35) - HYDRAULIC SYSTEMS
35.359.480
2
3
3
1
4
35.739.110
35.359.490
35.359.485
35.359.475
35.357.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87480653

DAMPING VALVE

ASSY

1шт.

2

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
