(55.036.030) - VAR - 423084 - AUXILIARY CONTROL VALVE, SOLENOID

Запчасти Case 580N (55.036.030) - VAR - 423084 - AUXILIARY CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS

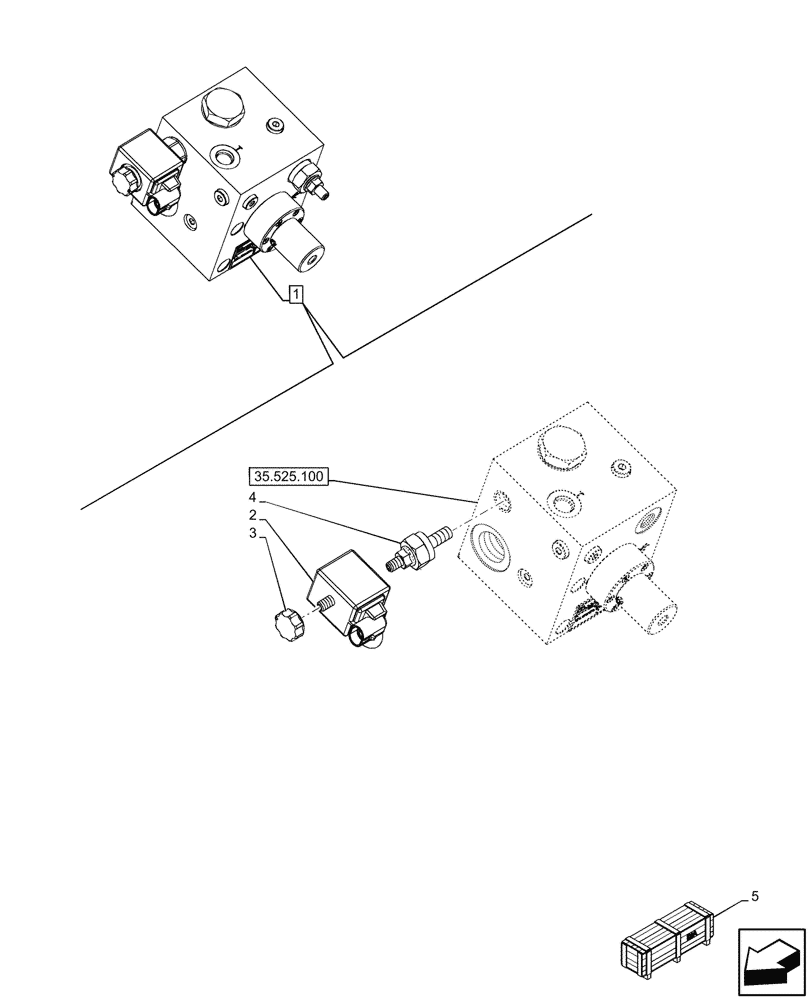

Схема запчастей Case 580N - (55.036.030) - VAR - 423084 - AUXILIARY CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS
35.525.100
5
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84247110

VALVE

ASSY, Closed Center, UNI-AUX, Incl 2 - 4

1шт.

See also Valve Components in Figure 35.525.100

1шт.

2

84478803

COIL

Solenoid with Connector Diode

1шт.

3

9970384

RING NUT

1шт.

4

47491458

SOLENOID VALVE

1шт.

5

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
