(55.036.050) - VAR - 747662 - AUXILIARY CONTROL VALVE, SOLENOID

Запчасти Case 580N (55.036.050) - VAR - 747662 - AUXILIARY CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS

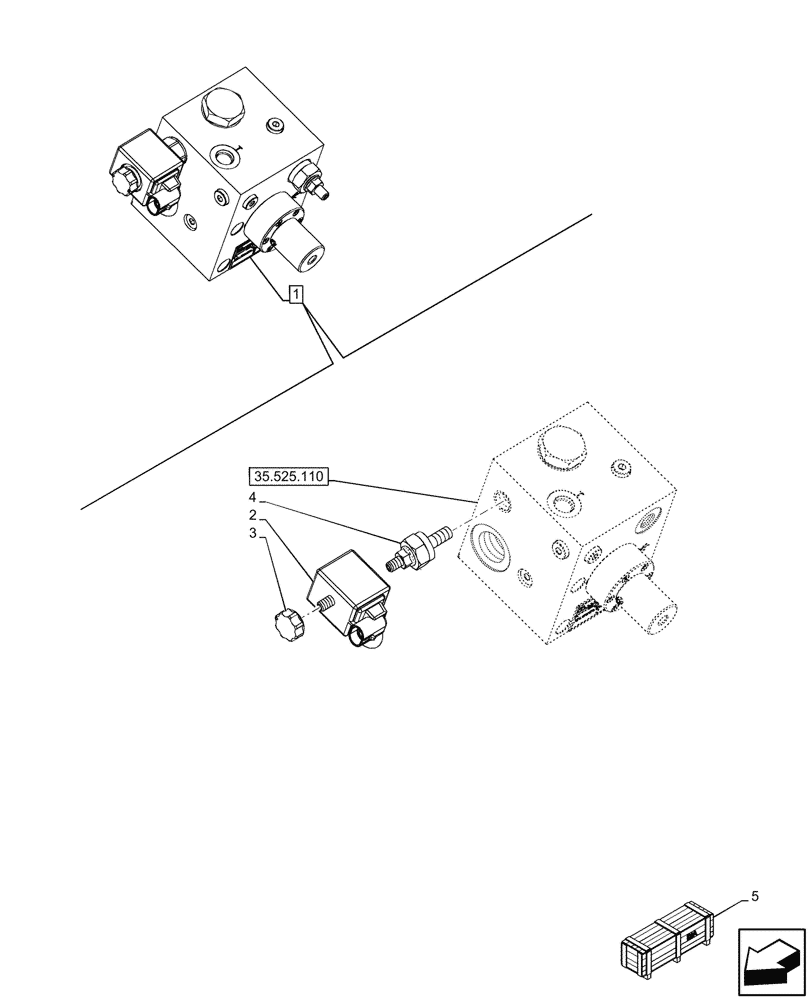

Схема запчастей Case 580N - (55.036.050) - VAR - 747662 - AUXILIARY CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS
35.525.110
2
3
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84247110

VALVE

ASSY, Closed Center, UNI-AUX, Incl 2 - 4

1шт.

See also Valve Components in Figure 35.525.110

1шт.

2

84478803

COIL

Solenoid with Connector Diode

1шт.

3

9970384

RING NUT

1шт.

4

47491458

SOLENOID VALVE

1шт.

5

84487512

KIT

Uni-Auxiliary, Incl 1 - 4

1шт.

Valid for 580N NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84487895

KIT

Uni-Auxiliary, Incl 1 - 4

1шт.

Valid for 580N NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84544872

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84544875

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
