(55.512.130) - VAR - 423058, 423059 - POWERSHUTTLE, TRANSMISSION, RIGHT SIDE, INSTRUMENT CLUSTER

Запчасти Case 580N (55.512.130) - VAR - 423058, 423059 - POWERSHUTTLE, TRANSMISSION, RIGHT SIDE, INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS

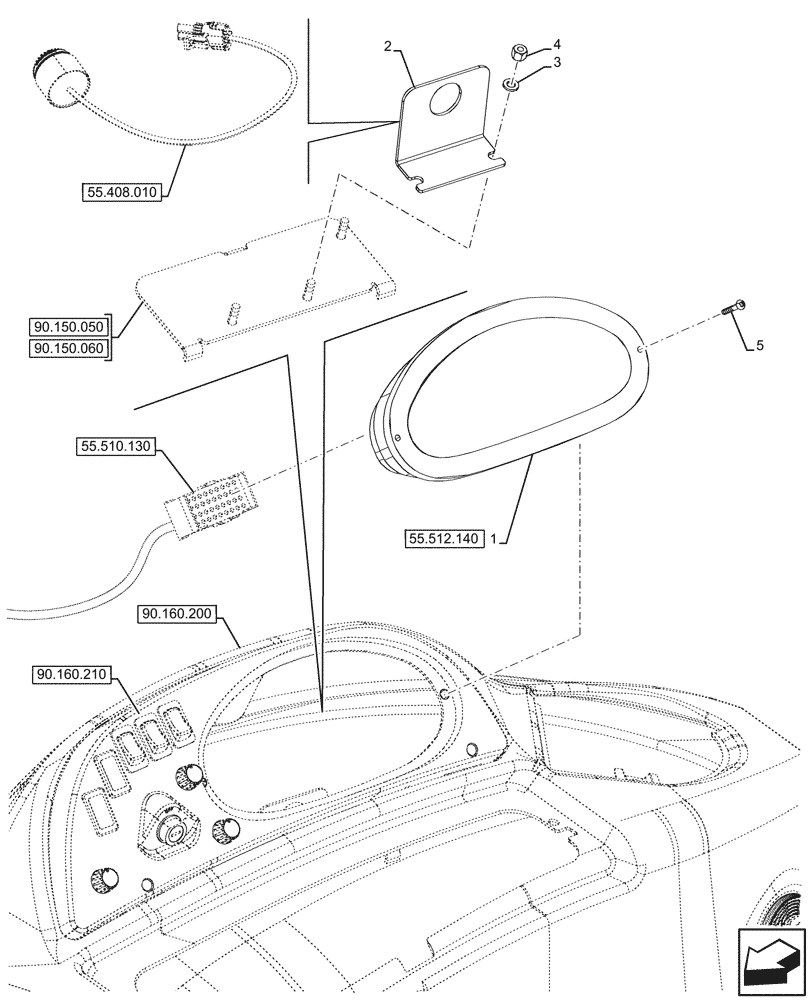

Схема запчастей Case 580N - (55.512.130) - VAR - 423058, 423059 - POWERSHUTTLE, TRANSMISSION, RIGHT SIDE, INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS
90.150.050
4
1
5
2
3
90.160.200
55.408.010
90.150.060
55.510.130
90.160.210
55.512.140
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87521766

MILES COUNTER DEVICE

For Mechanical Engine

1шт.

2

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

2шт.

3

47573362

BRACKET

Alarm, Grey

1шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.
