(55.512.260) - VAR - 747770 - CAB, SEAT AIR SUSPENSION, CLOTH, SWITCH, HARNESS

Запчасти Case 580N (55.512.260) - VAR - 747770 - CAB, SEAT AIR SUSPENSION, CLOTH, SWITCH, HARNESS (55) - ELECTRICAL SYSTEMS

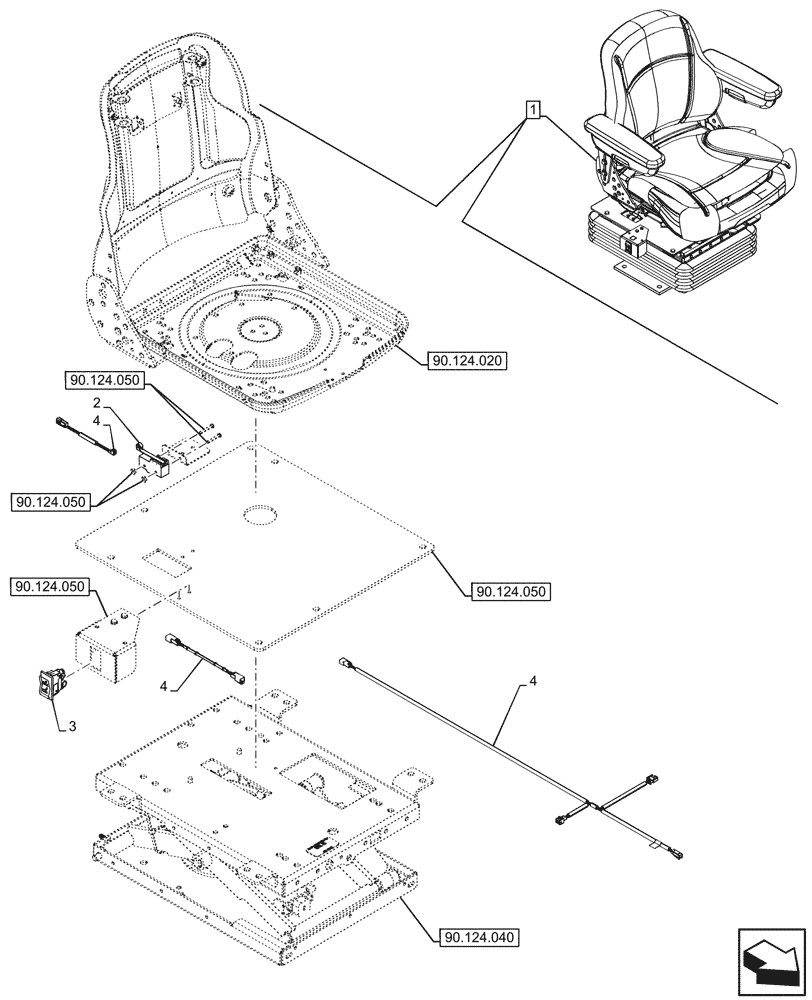

Схема запчастей Case 580N - (55.512.260) - VAR - 747770 - CAB, SEAT AIR SUSPENSION, CLOTH, SWITCH, HARNESS (55) - ELECTRICAL SYSTEMS
90.124.040
2
4
4
3
1
4
90.124.050
90.124.050
90.124.050
90.124.050
90.124.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47945898

DRIVER SEAT

ASSY, Cloth, Gray Fabric, Incl 2 - 4

1шт.

See also Driver Seat Components in Figures 90.124.020, 90.124.030, 90.124.040, 90.124.050

1шт.

2

84276125

SWITCH

Push Button

1шт.

3

87475861

ROCKER SWITCH

1шт.

4

84276128

SERVICE KIT

Wire Harness

1шт.
