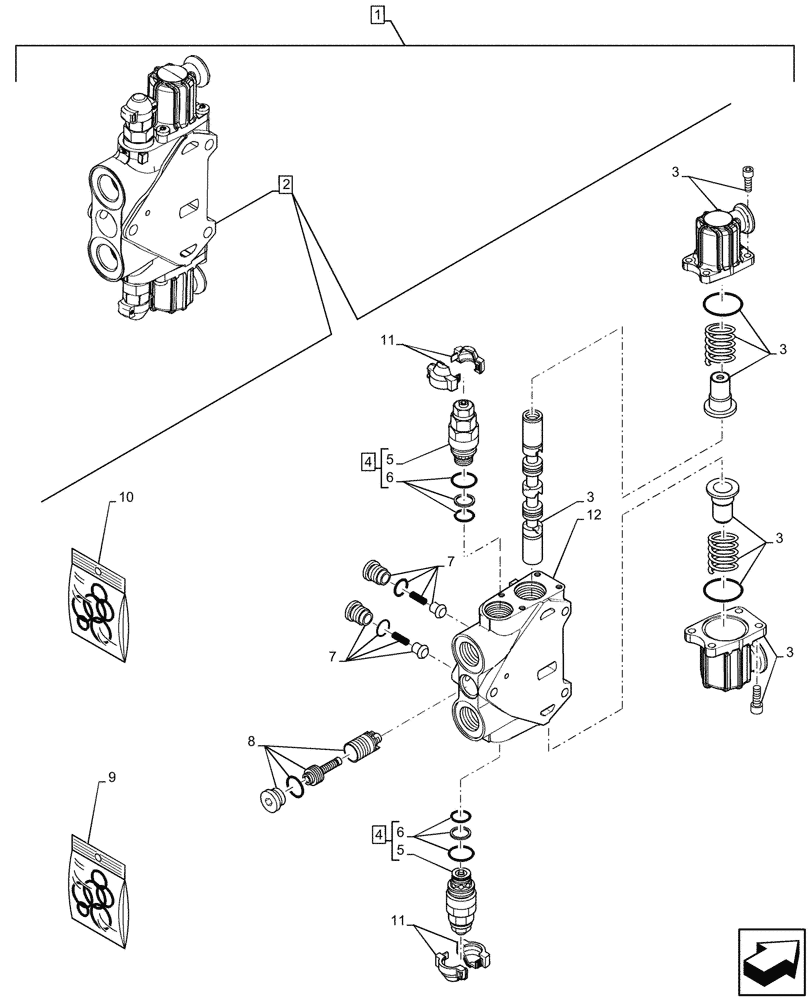

Запчасти Case 580N (88.100.35[11]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, STANDARD DIPPER, VALVE, COMPONENTS (88) - ACCESSORIES

1

47670289

SERVICE KIT

Dual Auxiliary, Pilot Control, Standard Dipper, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84278691

HYD VALVE SECTION

ASSY, BI-DIR Pilot Control, Incl 3 - 12

1шт.

3

85826344

KIT,Operation

1шт.

4

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220 bar, Incl 5

2шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 4

2шт.

6

85811933

SEAL KIT,Secondary Valve

Secondary Valve

2шт.

7

85811938

KIT,Check Valve

2шт.

8

85819378

KIT

Compensator

1шт.

9

85824281

SEAL KIT,Control Valve Section, Complete

Swing & Outlet Sections

1шт.

10

85819148

SEAL KIT,Between Control Valve Sections

Between Control Valve Sections

1шт.

11

NSS

NOT SOLD SEPARAT

Protection Valve, Incl in 2

2шт.

12

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.
