(25.108.AG[02]) - FRONT AXLE, STEERING KNUCKLE, PIN, 4WD

Запчасти Case 580N EP (25.108.AG[02]) - FRONT AXLE, STEERING KNUCKLE, PIN, 4WD (25) - FRONT AXLE SYSTEM

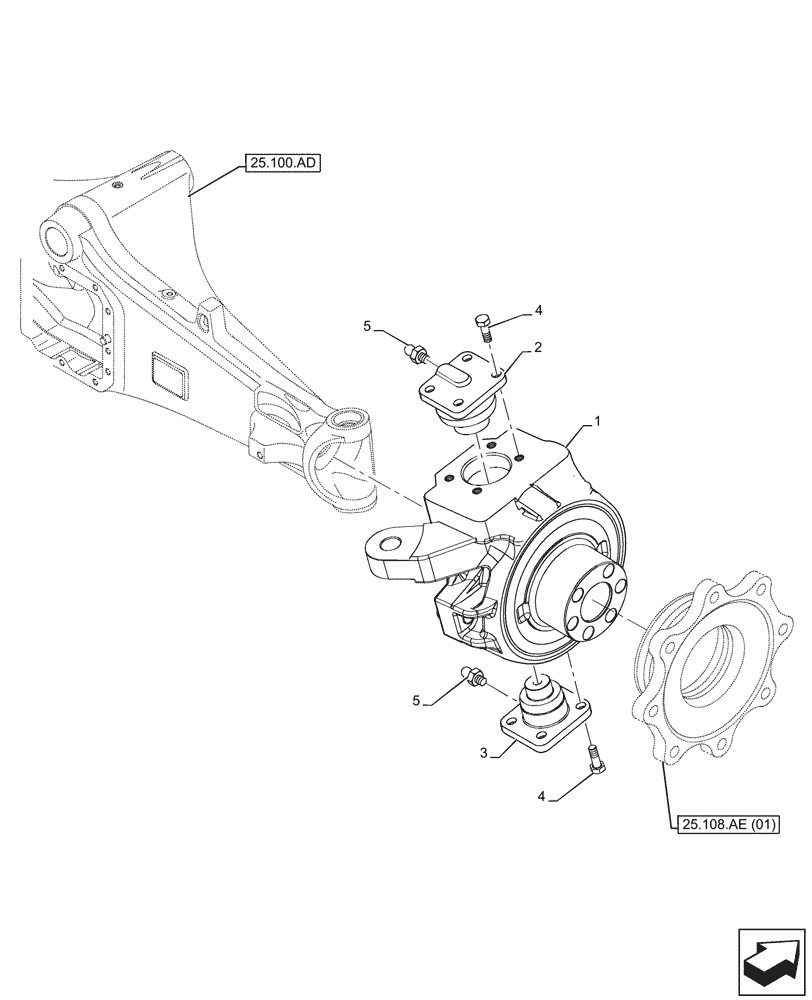

Схема запчастей Case 580N EP - (25.108.AG[02]) - FRONT AXLE, STEERING KNUCKLE, PIN, 4WD (25) - FRONT AXLE SYSTEM
25.100.ad
4
3
2
1
5
4
5
25.108.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84497941

STEERING KNUCKLE

Rh PS1121 Machining

1шт.

2

84483732

PIN,34.9mm / 45mm OD x 44.2mm L

King Steering Knuckle Top

1шт.

3

84527633

PIN,25mm / 45mm OD x 39.9mm L

King Steering Knuckle Bottom

1шт.

4

47723589

SERRATED BOLT,Hex Flg, M12 x 1.75 x 33mm, Cl 12.9, Full Thd

8шт.

5

84351730

FITTING,M10 x 1

M10 x 1

2шт.

Выбрано товаров: 5
